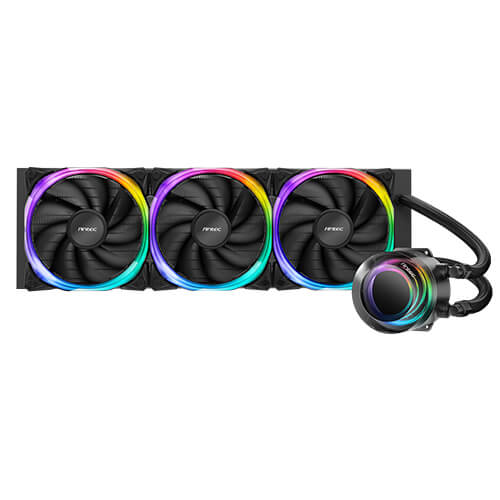

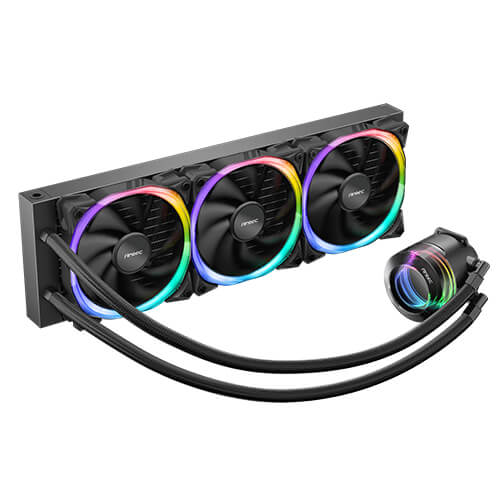

VORTEX 360
The Epoch-Making All in One ARGB CPU Liquid Cooler
Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient
Cooling Pump

High Performance Cooling

Performance data tested with Vortex 360 on AMD Ryzen 5600x
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.

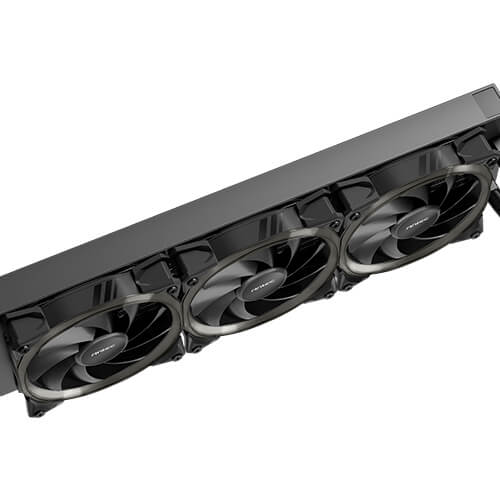

Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Included ARGB Controller Working
in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

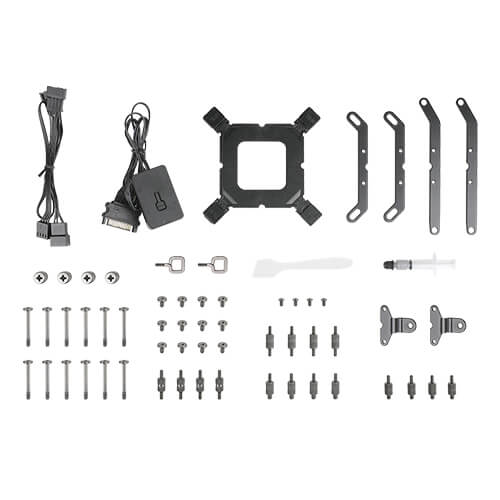

Package
SPECIFICATIONS

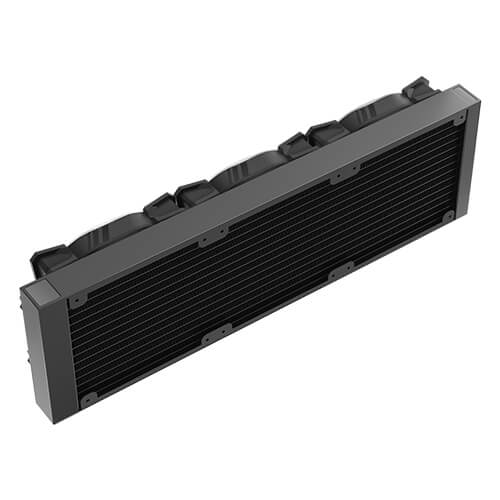

Radiator
Radiator Dimensions 397 x 120 x 27 mm
Radiator Material Aluminum
Tdp Number
Vortex360 280W
Pump
Dimensions ¢67 x 48.5 mm
Rating Voltage DC 12 V
Minimum Startup Voltage ≥ 5.0 V
Fan Speed 2800±10% RPM
Rated Current 0.25±20% A
Consumed Power 3.0 W
Flow rate ≥ 1300 mL/min
Water Pressure 1.4M
Operation Temperature -10°C ~ +60°C
Noise Level ≤ 28 dB(A)
Lifespan 40,000 hours
Connector PUMP: 3-pin | LED: 3-pin
Fan
Model Name Fusion 120 ARGB fan (AH12012FM1)
Fan Type PWM Fan
Dimensions 120 x 120 x 25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 600±200 ~ 2000±10% RPM
Airflow 57.93 CFM (max.)
Air Pressure 2.11 mmH₂O (max.)
Fan Noise Level 31.24 dB(A)
Lifespan 40,000 hours
Connector FAN: 4-pin PWM | LED: 3-pin
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Socket Compatibility CPU Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3 / AM4 / AM5 / TR4
Warranty 3 years
UPC# 0-761345-74047-0
