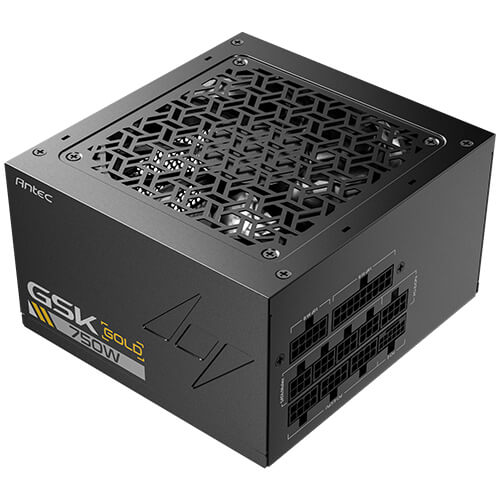

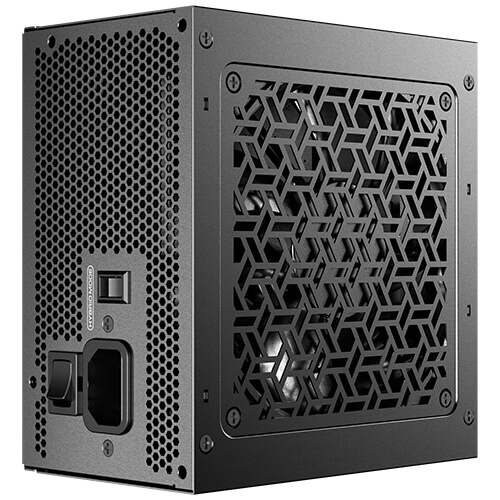

GSK ATX3.1 750W 80 PLUS Gold
Full Modular 80 PLUS Gold Power Supply
Model | GSK750 ATX3.1 |
Safe Model | X7000A117XU-24 |
Type | ATX 12V 3.1 |
Dimension | 140(L) x 150(W) x 86(H) mm |
Modular | Full-Modular |
Warranty | 7 years |
Input Voltage | 100V-240V |
Input Current | 10A Max |
Input Frequency Range | 50Hz-60Hz |
PFC | Active PFC |
Power Good Signal | 100-150ms |
Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
Output Capacity | 750W |
Operation Temperature | 0~40°C |
Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES |

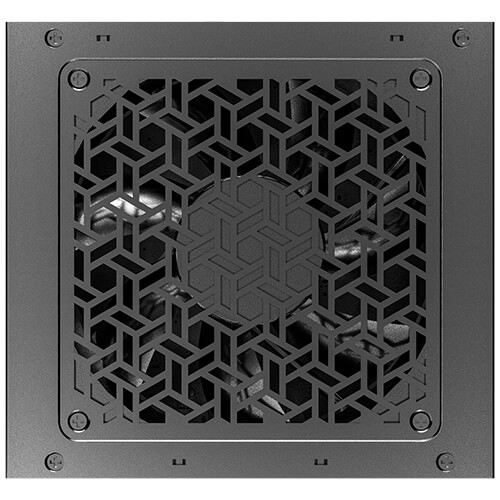

Fan | 120mm Silent Fan |
Certifications | 80 Plus Gold |
Box Dimensions | 296(L) x 203(W) x 130(H) mm |
Net Weight | 2.52 kg |
Gross Weight | 2.74 kg |

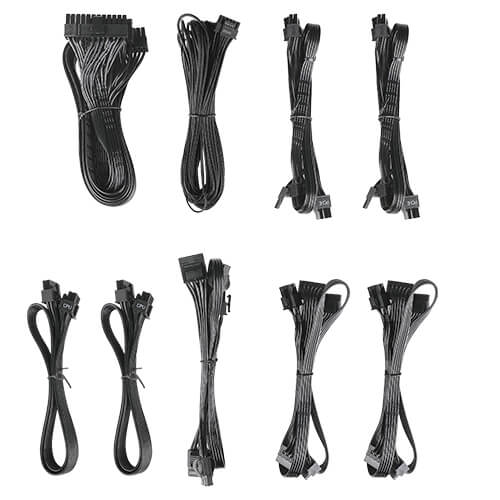

Connector | 1 x 24 (20+4) pin MB |
1 x 16 (12+4) pin PCIE 5.1 12VHPWR | |
2 x 8 (4+4) pin CPU | |
4 x 8 (6+2) pin PCI-E | |
8 x SATA | |
4 x Molex | |
UPC# | 0-761345-20053-0 GSK750 US 0-761345-20054-7 GSK750 JP 0-761345-20055-4 GSK750 GB 0-761345-20056-1 GSK750 EC 0-761345-20057-8 GSK750 AU |
