The Vortex View 360 features an adjustable retention ring designed to support multiple CPU socket types. Before installing on an AMD platform, ensure the retention ring is adjusted inward to the AMD position so the mounting points align correctly. For detailed installation guidance, please refer to the user manual here

Update your motherboard BIOS to the latest available version. Older firmware on some systems may not properly restore USB connectivity after sleep. Refer to your motherboard manufacturer’s documentation for instructions on updating the BIOS.

The washers are already installed on the radiator with the fans. No additional washers are required when mounting the radiator to the case.

Connect the radiator fans to any 4-pin PWM fan header using the included 3-to-1 splitter cable. Connect the pump to either the CPU_FAN or AIO_PUMP header, depending on your motherboard’s layout.

Refer to your motherboard’s manual for the correct header locations and any specific recommendations for AIO pumps or cooling systems.

For optimal cooling performance, orient the pump with the tubes facing south (6 o’clock) for Intel CPUs and east (3 o’clock) for AMD CPUs. This ensures ideal hose positioning and coolant flow.

We recommend mounting the radiator at the top or side of your case, depending on available space. Mounting it at the top generally offers the best heat dissipation and airflow efficiency.

Ensure the pump block is securely and evenly mounted to the CPU. If the screws on any side are loose or uneven, the cold plate may not make full contact, reducing cooling efficiency. Verify that thermal paste is applied correctly and that fans and pump are running at expected speeds in iUnity.

If the Vortex View 360 powers on and shows the Antec logo but doesn’t proceed further, the panel may not be initializing correctly.

1. Make sure the USB cable is connected to the USB hub, and that the hub is properly connected to the motherboard.
2. Confirm that iUnity is installed. If necessary, reinstall it. iUnity includes the driver bundle that allows Windows to recognize the panel as a native display.
3. Restart your PC to reinitialize communication with the panel.

If the screen still shows only the logo after restarting, open iUnity → Settings → Event Log, download your log file, and reach out to our support team at https://www.antec.com/support

If the panel powers on (RGB lighting and pump are active) but the display remains blank, the video handshake between Windows and the Vortex View screen may have been interrupted.

1. 1. Restart your PC to reestablish communication with the display.
2. Ensure that iUnity is running in the background. The display requires iUnity to push video output and control data.
3. Confirm that the USB hub and display cables are securely connected to the motherboard and internal headers.
4. If the issue persists, reinstall iUnity to refresh the driver bundle and reconnect the display service.

If the screen remains blank after these steps, open iUnity → Settings → Event Log, download your latest log file, and reach out to our support team at https://www.antec.com/support for review.

First, check what the Vortex View panel is showing:

If the Antec logo appears but nothing else loads, follow the steps in “My screen shows only the Antec logo. What should I do?”

If the panel is powered on (lighting or pump active) but the screen stays completely blank, follow the steps in “My screen is blank but the panel has power. How can I fix this?”

Windows recognizes the Vortex View panel as an external display. When your PC goes to sleep or the “turn off display after” setting activates, Windows stops sending video output to all connected monitors. As a result, the Vortex View’s screen will go dark, even though the panel itself remains powered. Its lighting and pump will continue running until the PC resumes output.

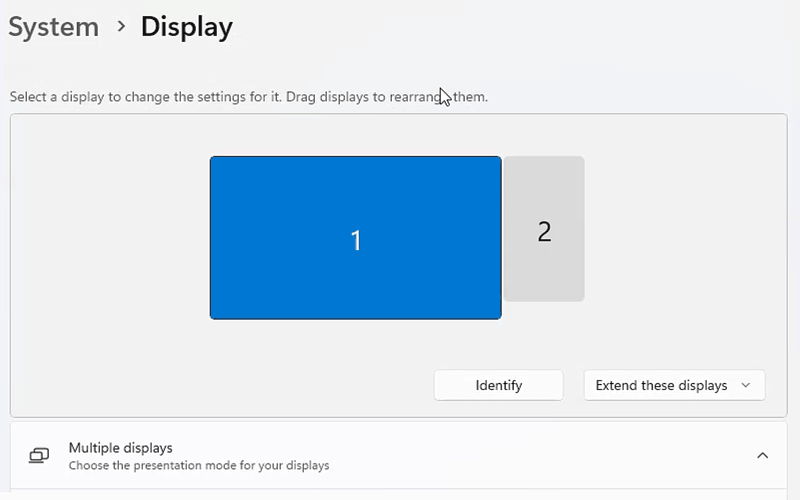

Once the necessary software and drivers are installed, Windows will recognize the Vortex View panel as an external monitor. Because Windows can’t detect the panel’s physical orientation, you’ll need to adjust it manually:

1. 1. Open Display Settings in Windows.
2. Select the correct monitor (use the Identify button if you’re unsure which is which).
3. Under Scale & Layout, find Display Orientation and choose the correct setting (Landscape, Portrait, etc.).
4. Apply the change to correct the display.

Both the Vortex View Panel and the Flux Pro receive temperature data from the same source. However, because each device updates its display at a slightly different rate, the readings may appear temporarily out of sync.

For optimal performance, we recommend keeping iUnity running at all times. If iUnity is closed, the pump will continue to operate in its default state, but you’ll lose access to the Vortex View display, RGB customization, and other iUnity features such as fan control.

We understand that some users prefer lightweight setups or use other software for system management. To support this, iUnity includes a toggle option that allows you to disable fan control while keeping other features active. This ensures minimal system resource usage and gives you flexibility in choosing your preferred control software.

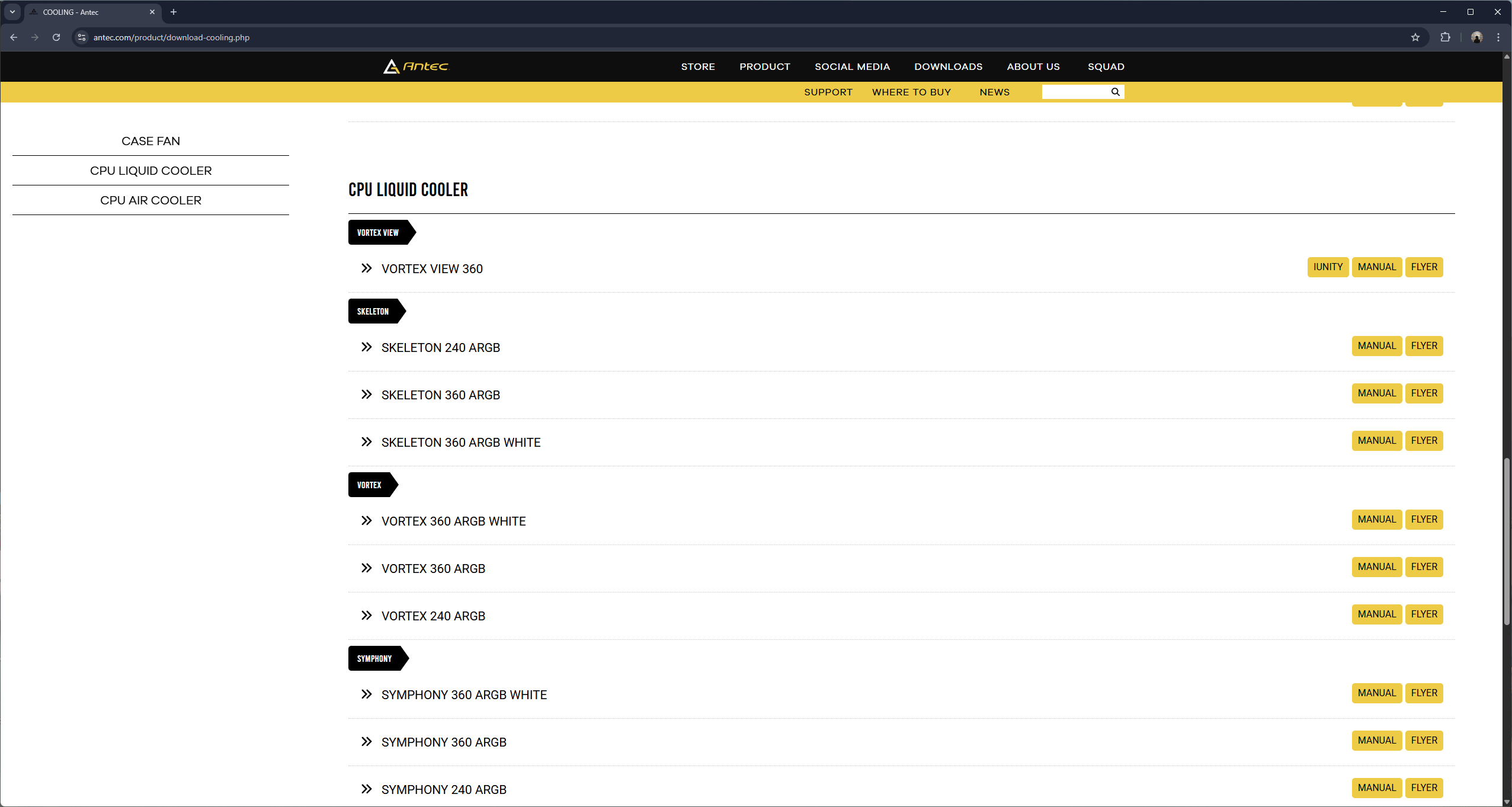

Visit https://antec.com/product/download-cooling.php to check for the latest version of iUnity and firmware updates for the Vortex View. Follow the on-screen instructions to install updates.

iUnity must be installed for Windows to recognize the Vortex View display and provide firmware communication. Without iUnity, the pump will still run in its default profile through the PWM header, maintaining CPU cooling, but the display and lighting controls will be unavailable.

Yes. The Vortex View functions as a standard Windows display and can be used with multiple monitors. You can position or disable it within Display Settings like any other external screen.

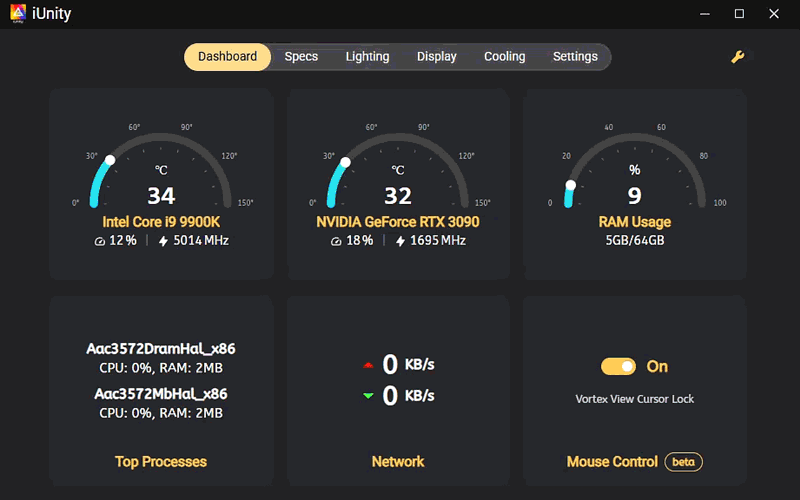

We included a Mouse Lock feature to prevent the cursor from unintentionally moving onto the Vortex View screen. This avoids losing your cursor on a secondary display you may not be using. You can toggle Mouse Lock on or off whenever you need to access the Vortex View display.

This is a known issue related to the Vortex View Mouse Lock feature. It can occasionally override fullscreen behavior in certain applications, allowing the cursor to move outside the app window. We are working on a permanent fix.

In the meantime, toggle Mouse Lock off as a temporary workaround.

Since the Vortex View panel functions as a standard Windows external display, you have many options for customization. You can use iUnity’s built-in image or GIF upload feature, select a wallpaper through Windows’ native interface, or run third-party software to display custom content. If it can appear on a Windows monitor, it can appear on the Vortex View.

Yes. In iUnity, open the Display tab and enable the System Overlay option to show real-time performance data such as CPU temperature, GPU load, and fan speeds.

iUnity supports GIF uploads directly within the software. The Vortex View display operates at 720p, 60 Hz. If you use the display as a standard Windows monitor, any compatible format or resolution can be shown.

Brightness control for the display is not currently available. However, you can adjust the RGB backlight brightness in iUnity under the Lighting tab.

You can disable the Vortex View display in Windows Display Settings. This turns off video output while keeping the pump and lighting operational. To re-enable the screen, reopen Display Settings and select “Extend” or “Duplicate” display mode.

Clean the radiator fins every 3–6 months to prevent dust buildup and ensure optimal airflow. Replace thermal paste approximately every 2–3 years, or sooner if you remove or remount the pump block.

There’s a known issue where the pump control is duplicated in the Cooling tab and appears again as a “Fan #X” entry. We’re working on a fix. For now, control of the pump is prioritized to the first listed option in the Cooling tab. We recommend leaving the duplicated “Fan #X” entry for the pump untouched until the issue is resolved.
