AX26 RGB
elite
Mid-Tower Gaming Case
Unique Design &
Powerful Heat
Dissipation

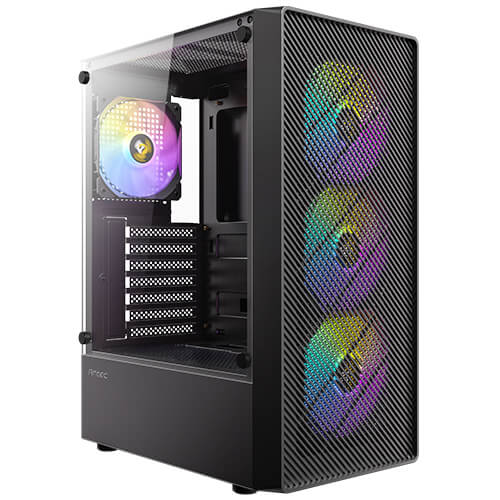

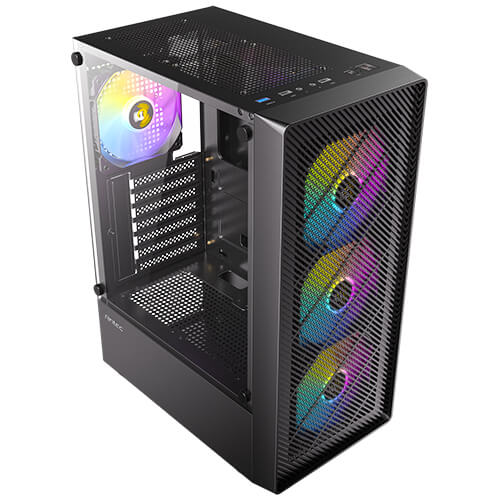

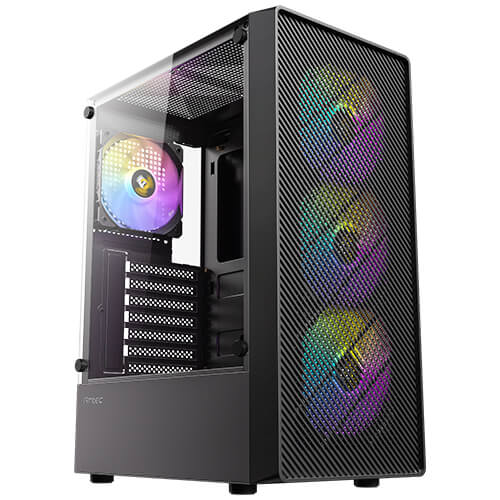

AX26 RGB Elite features a grille-style front panel that enhances airflow for efficient cooling. With a half-view tempered glass side panel, it provides a sleek and stylish showcase for your build.

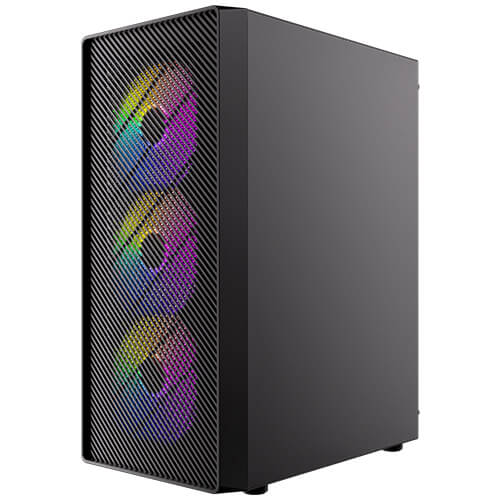

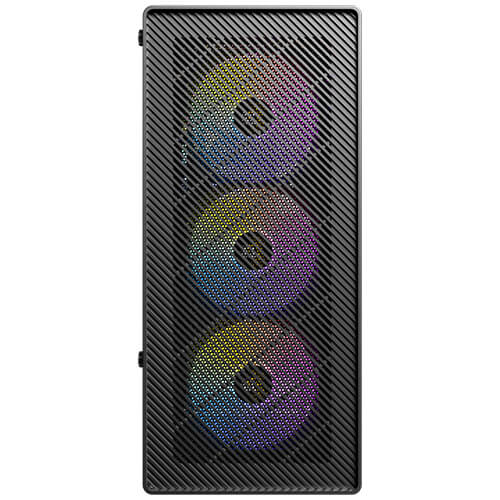

Grille-Style Front
Panel Design
Designed with a high-airflow, grille-style front panel, maximizing intake airflow while maintaining a modern aesthetic.
High-Airflow Front Panel
Optimized ventilation with massive air intake at the front, top, and bottom, ensuring stable system performance.

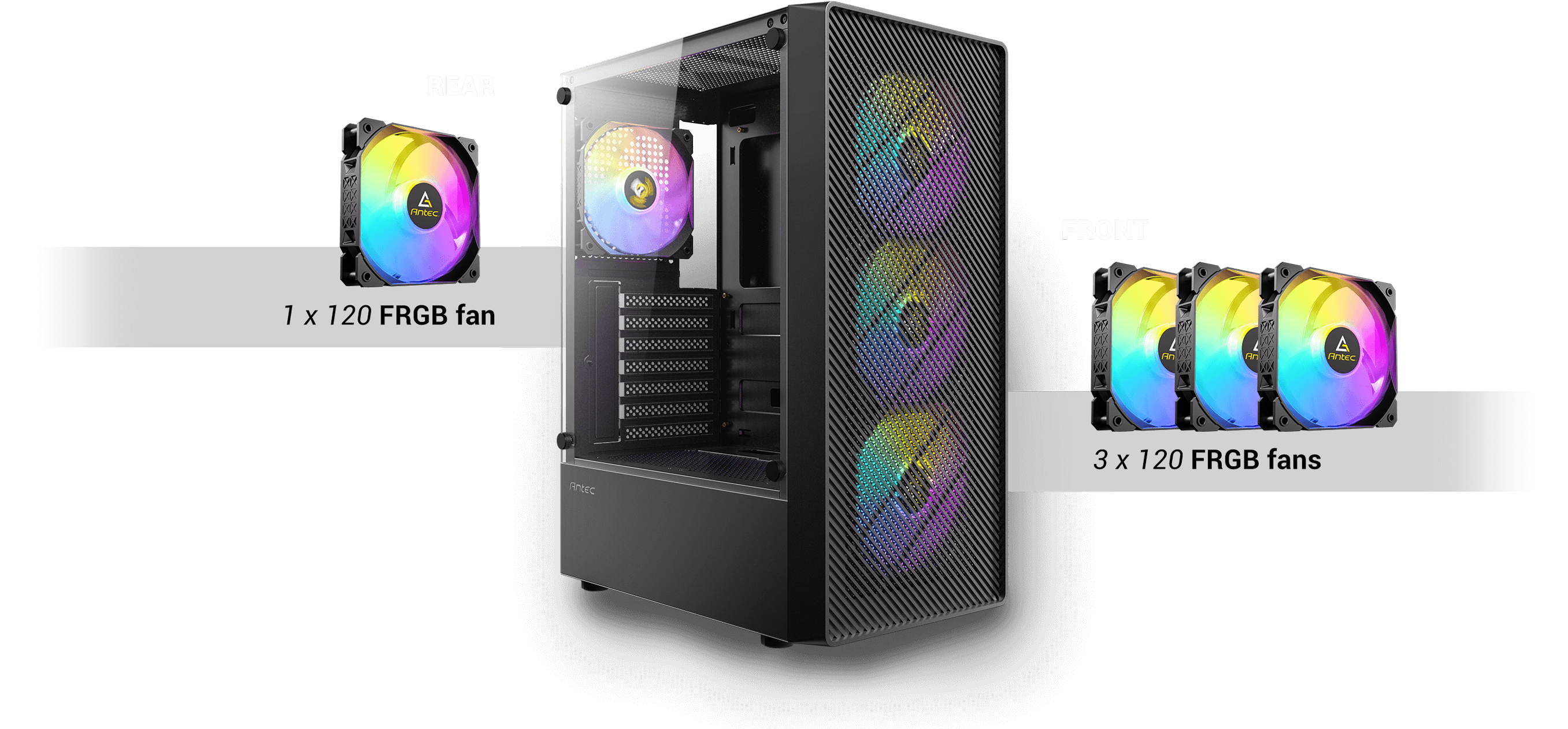

Pre-Installed
4 x 120mm RGB fix model fans

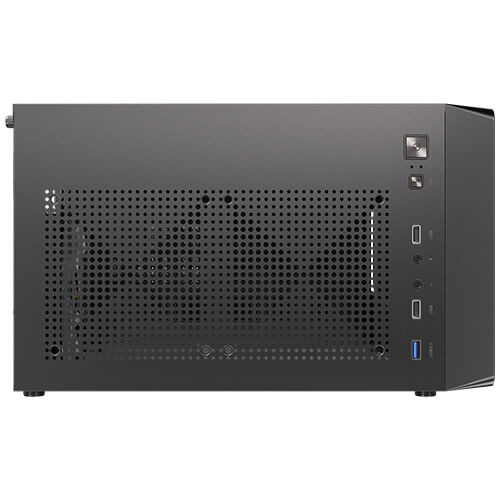

I/O Panel
Power, LED On/Off Button, 2 x USB 2.0, 1 x USB 3.0, MIC / HD-AUDIO

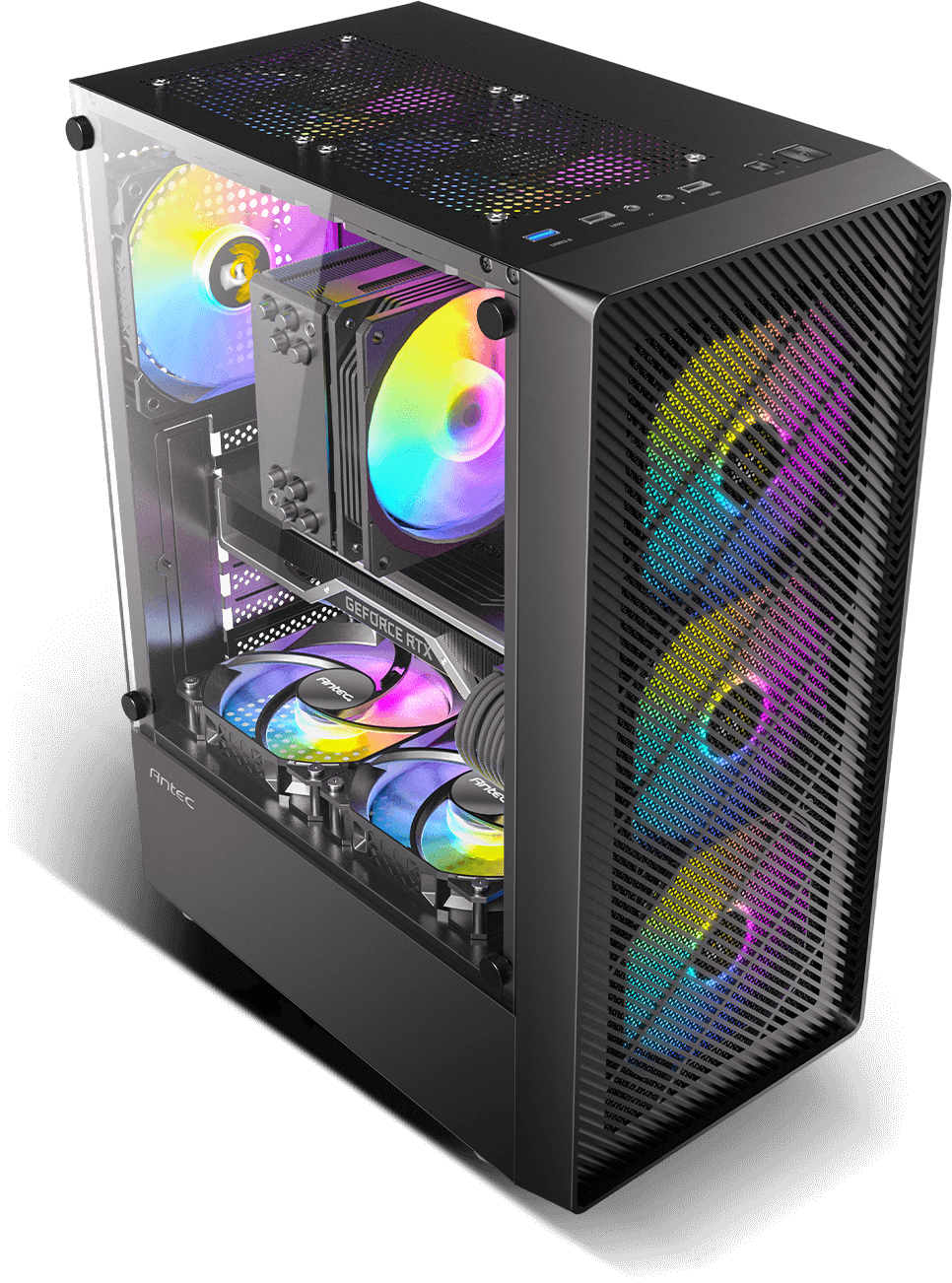

Up to 8 x 120mm Fans Simultaneously
Powerful Cooling Compatibility
Max. CPU Cooler Height : 155mm. Supports most of the high-end air coolers.

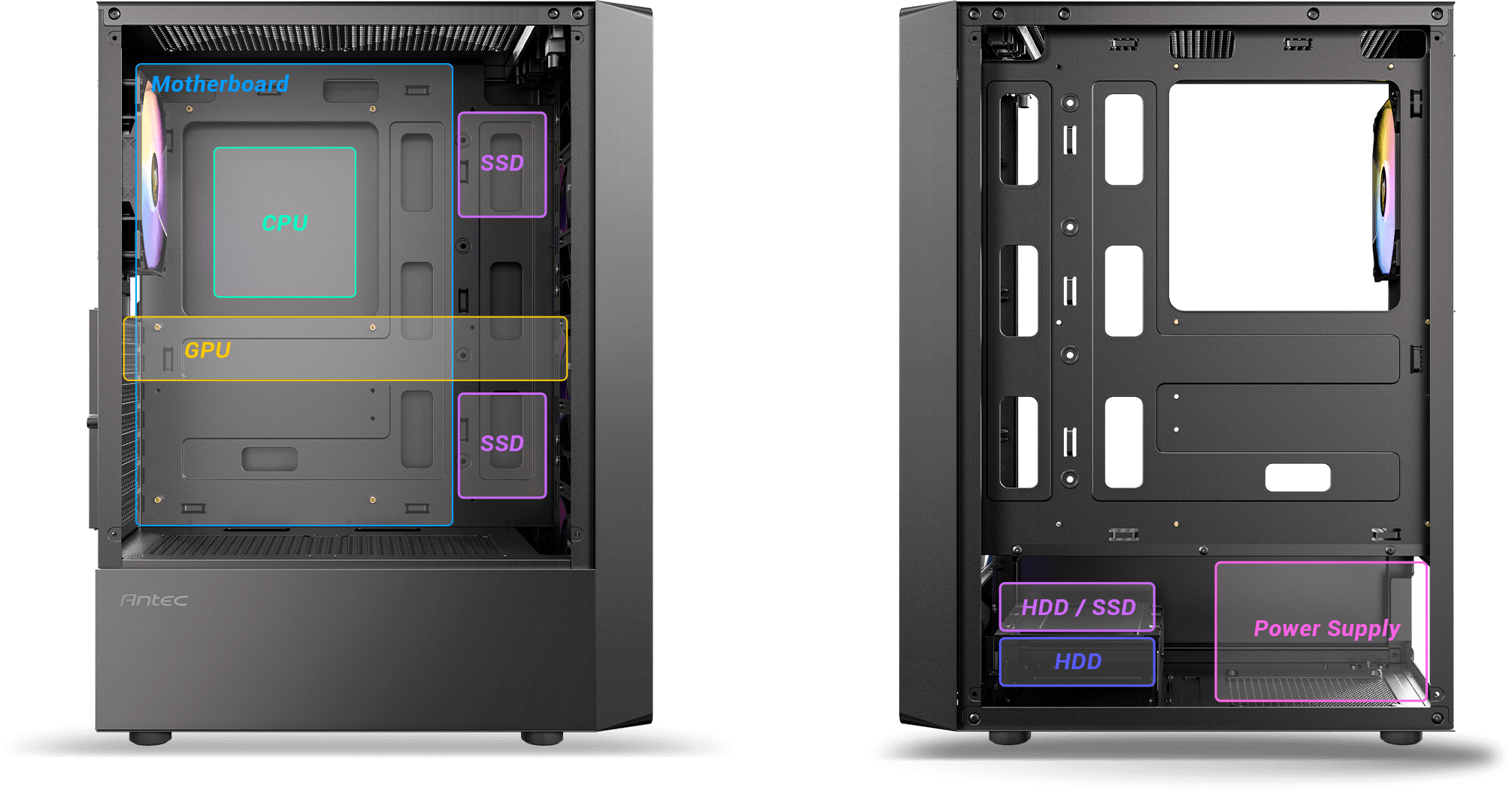

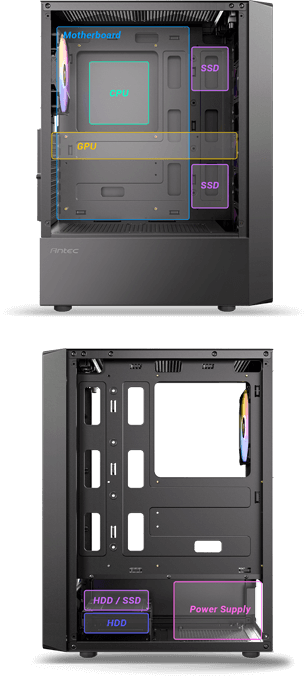

Compatibility
  • Motherboard support ATX, Micro-ATX, ITX
  • CPU cooler max height ≤ 155 mm
  • GPU max length ≤ 295mm (When the fan is installed at the front) /
    ≤ 270mm (When the fan is installed at the rear)
  • 3.5" / 2.5" Drive Mounts 2/1
  • 2.5" 2 (The motherboard width must be less than 185mm)
  • Power Supply max length (Include Cable)≤170mm(with HDD) /
    (Include Cable)≤295mm(without HDD)
Unlimited Performance
Max. GPU Length : ≤ 295mm (When the fan is installed at the front) /
≤ 270mm (When the fan is installed at the rear)
Dimensions
345 x 207 x 451mm (DWH)
SPECIFICATIONS
main spec
Dimensions 345 x 207 x 451mm (DWH)
Form Factor Mid Tower
Materials Steel+Plastic
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED On/Off Button, 2 x USB 2.0, 1 x USB 3.0, MIC/HD-AUDIO
Side Panel Tempered glass
Drive Bays

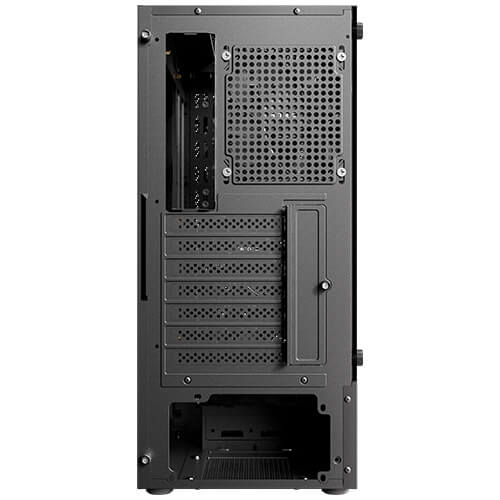

Expansion Slots 7
3.5" /2.5" 2/1
2.5" 2(The motherboard width must be less than 185mm)

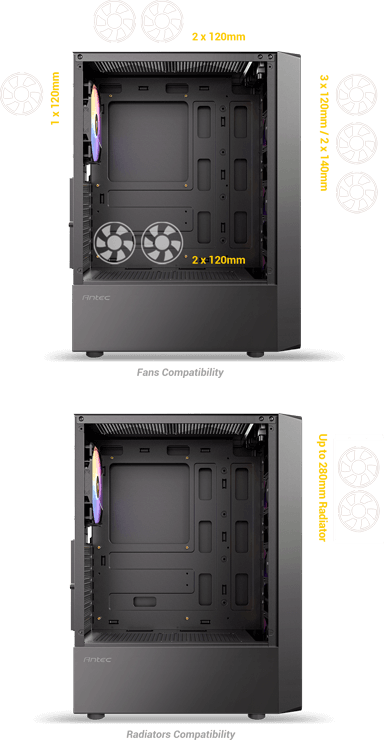

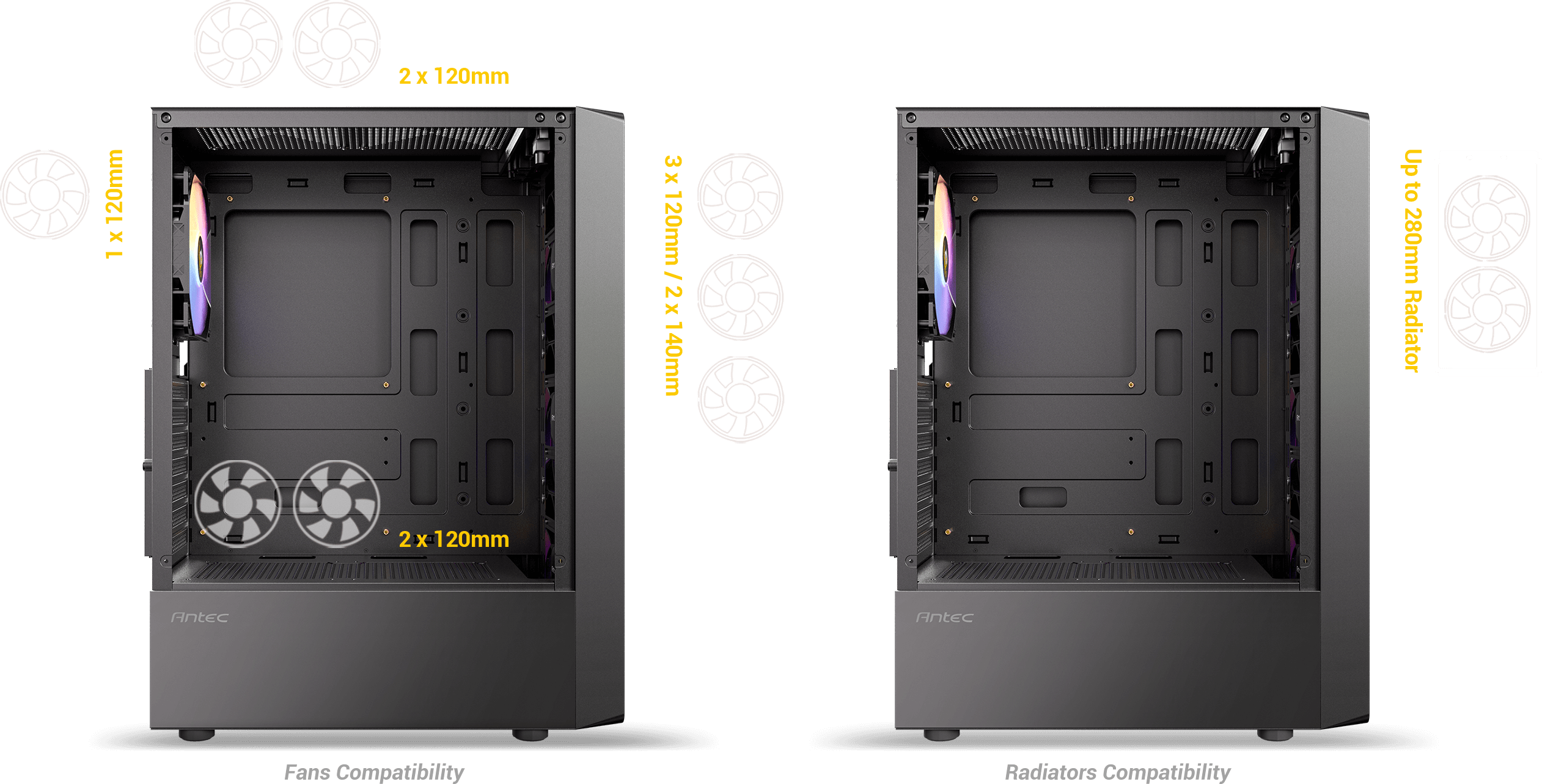

Fan Support
Front 3 x 120mm / 2 x 140mm
Top 2 x 120mm
Power supply 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120 RGB fixed model fans at the front + 1 x 120 RGB fixed model fan at the rear
Radiator Support
Front 120 / 140 / 240 / 280mm
Clearance
Max GPU Length ≤ 295mm (When the fan is installed at the front)
≤ 270mm (When the fan is installed at the rear)
Max CPU Cooler Height ≤ 155mm
Max PSU Length (Include Cable)≤170mm(with HDD)
(Include Cable)≤295mm(without HDD)
Miscellaneous
Dust Filter Front(Non-removable) / Bottom
Net Weight 3.96 kg
Gross Weight 4.85 kg
Warranty 1 Year
UPC# 0-761345-10199-8
