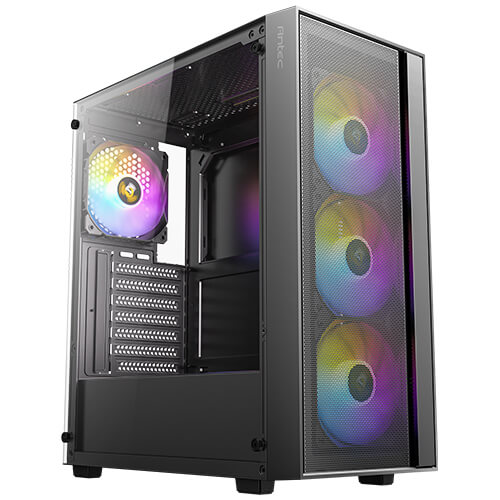

AX65
Mid-Tower Gaming Case
Unique Design &
Powerful Heat
Dissipation

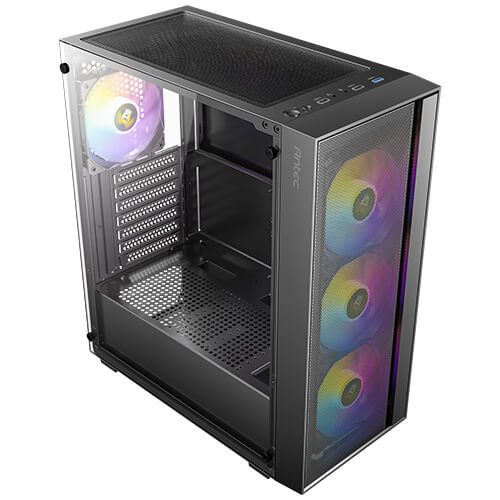

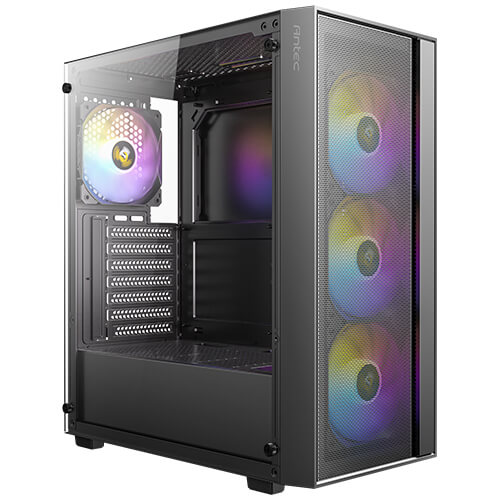

The AX65 ARGB features a high-airflow mesh front panel that maximizes ventilation, ensuring optimal cooling for high-performance gaming setups.

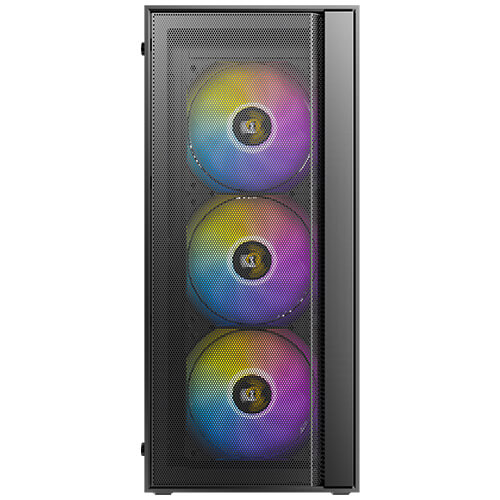

High-Airflow
Mesh Front Panel
Designed for superior airflow, the mesh front panel enhances cooling efficiency while maintaining a sleek and modern aesthetic.

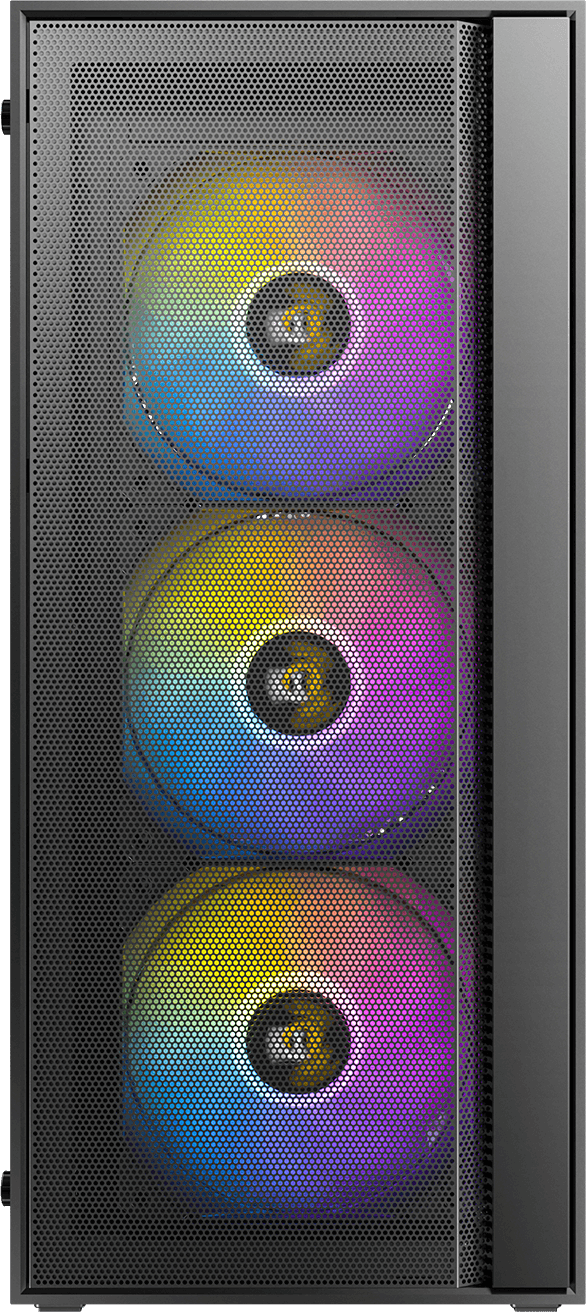

High-Airflow Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front ensure outstanding heat dissipation.

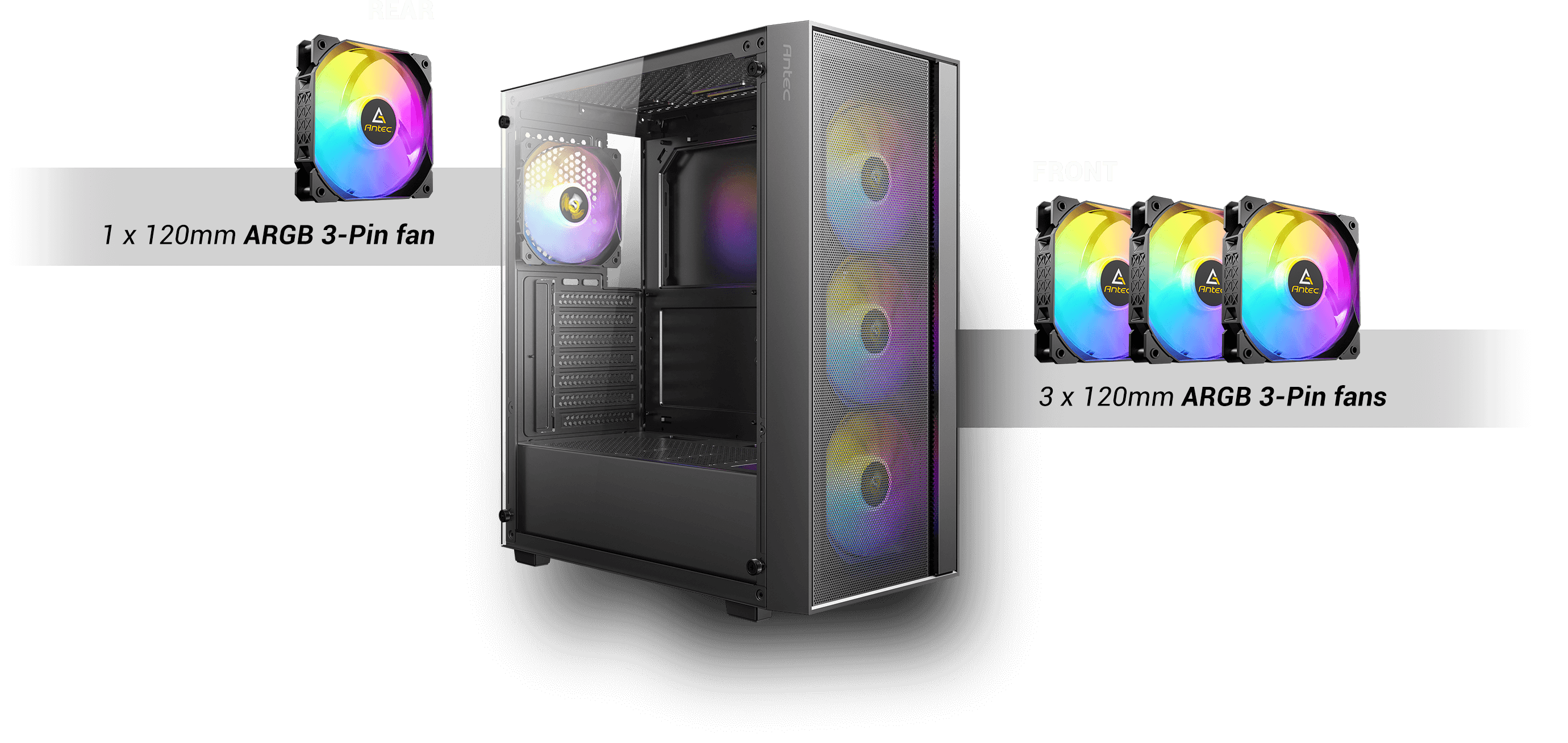

Pre-Installed
4 x 120mm ARGB fans
Work in sync with the motherboard.
In Sync with the Motherboard for ARGB Lighting
Use the main case fan to daisy-chain the other three fans for ARGB sync and create your personal style.

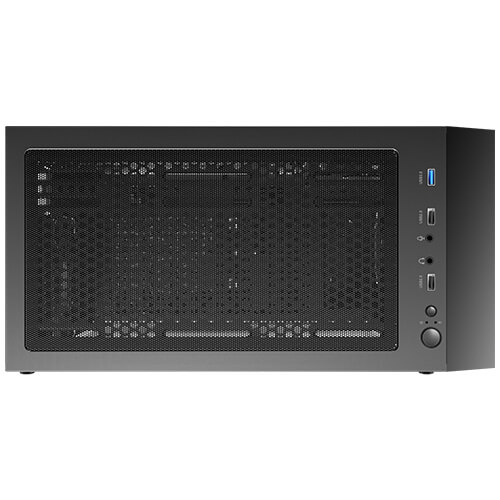

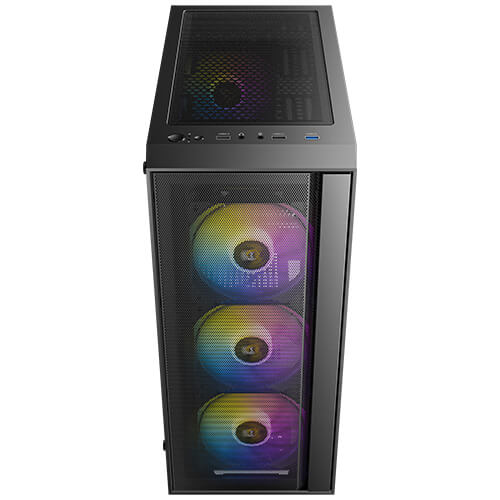

I/O Panel
Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO

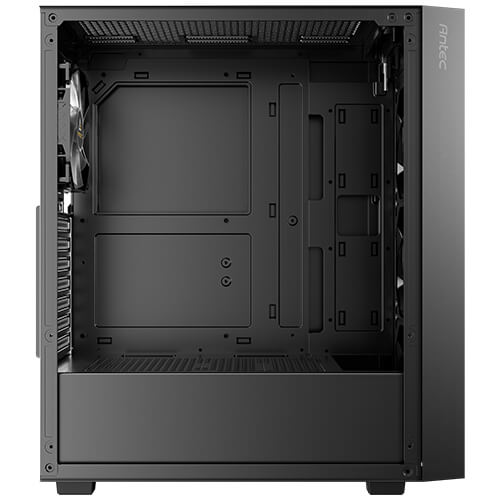

Neat Build within Reach

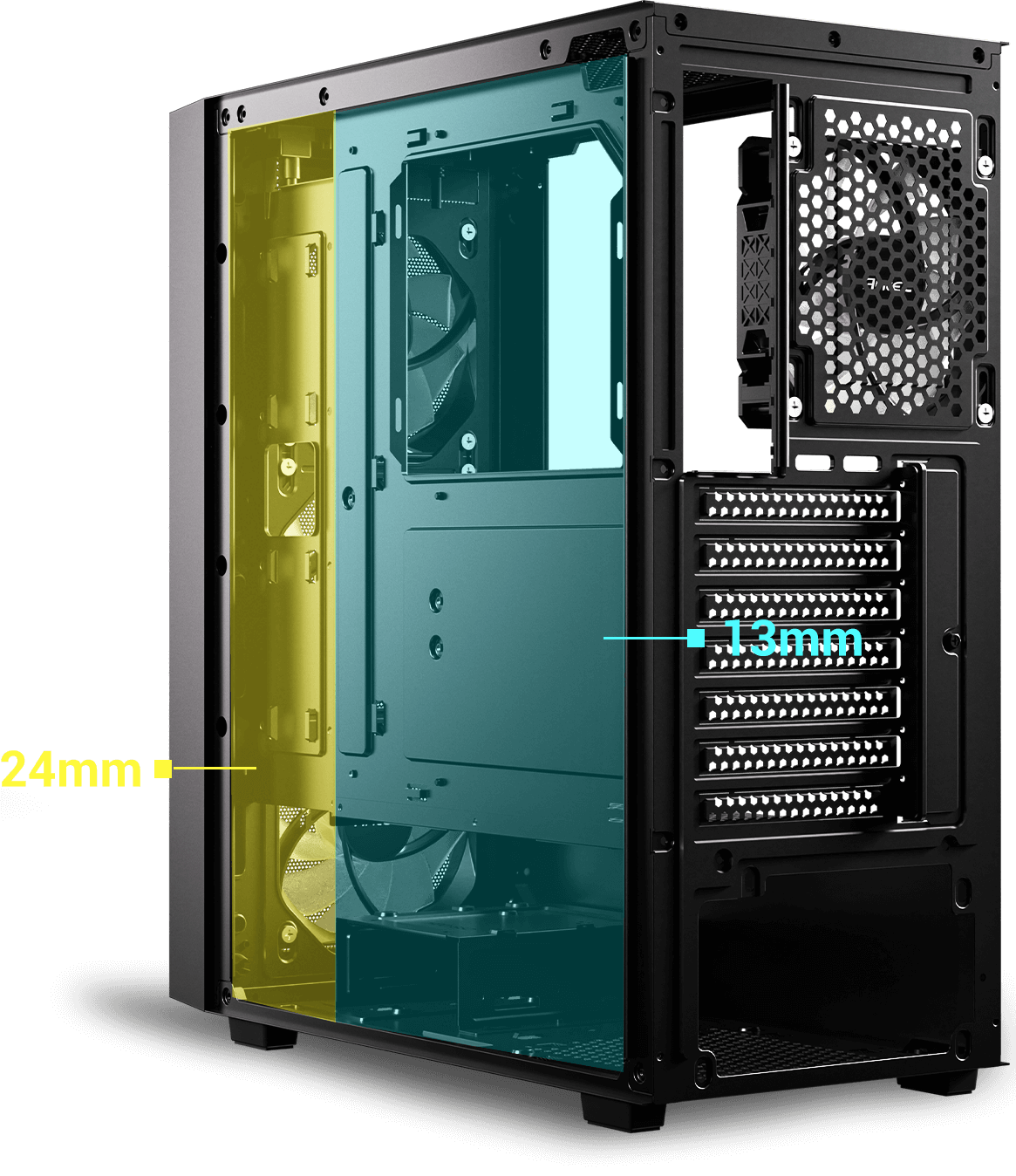

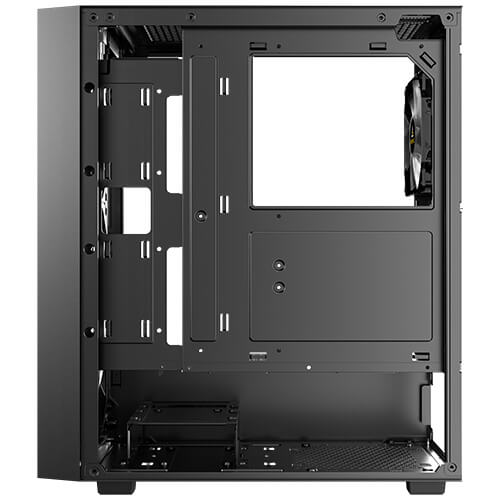

Featuring a 24mm-deep left-side and 13mm-deep right-side cable routing space, this case ensures a clean and organized PC build for a sleek, professional appearance.

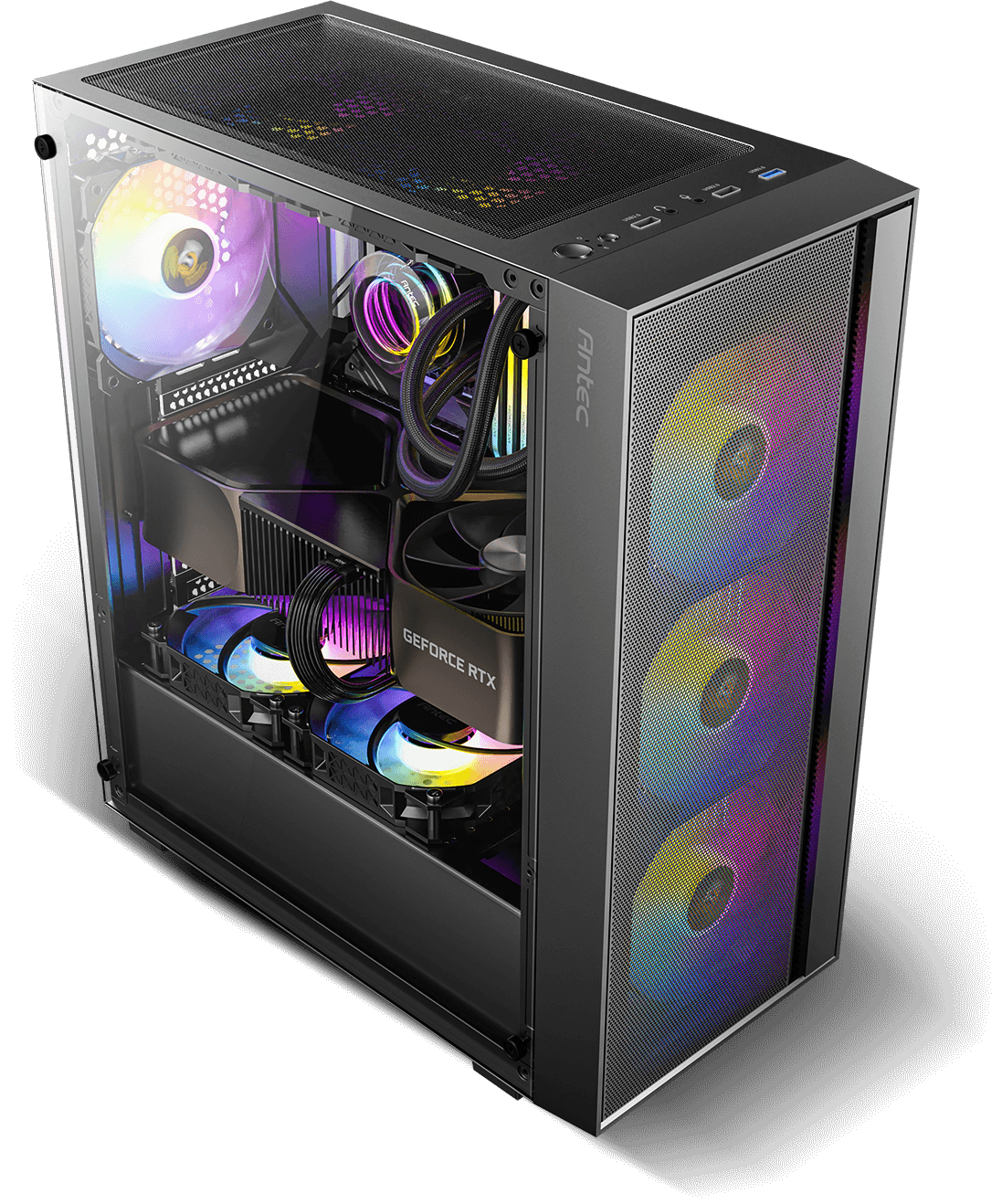

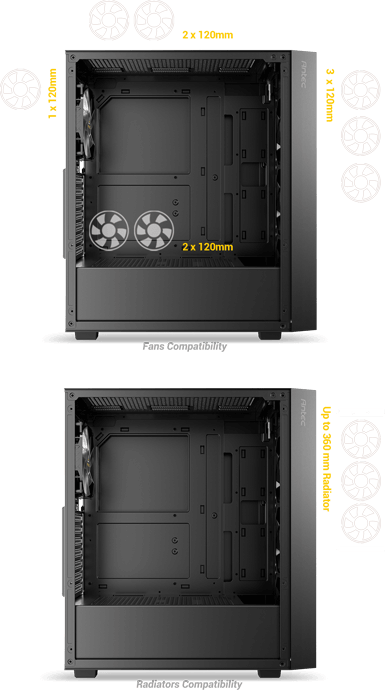

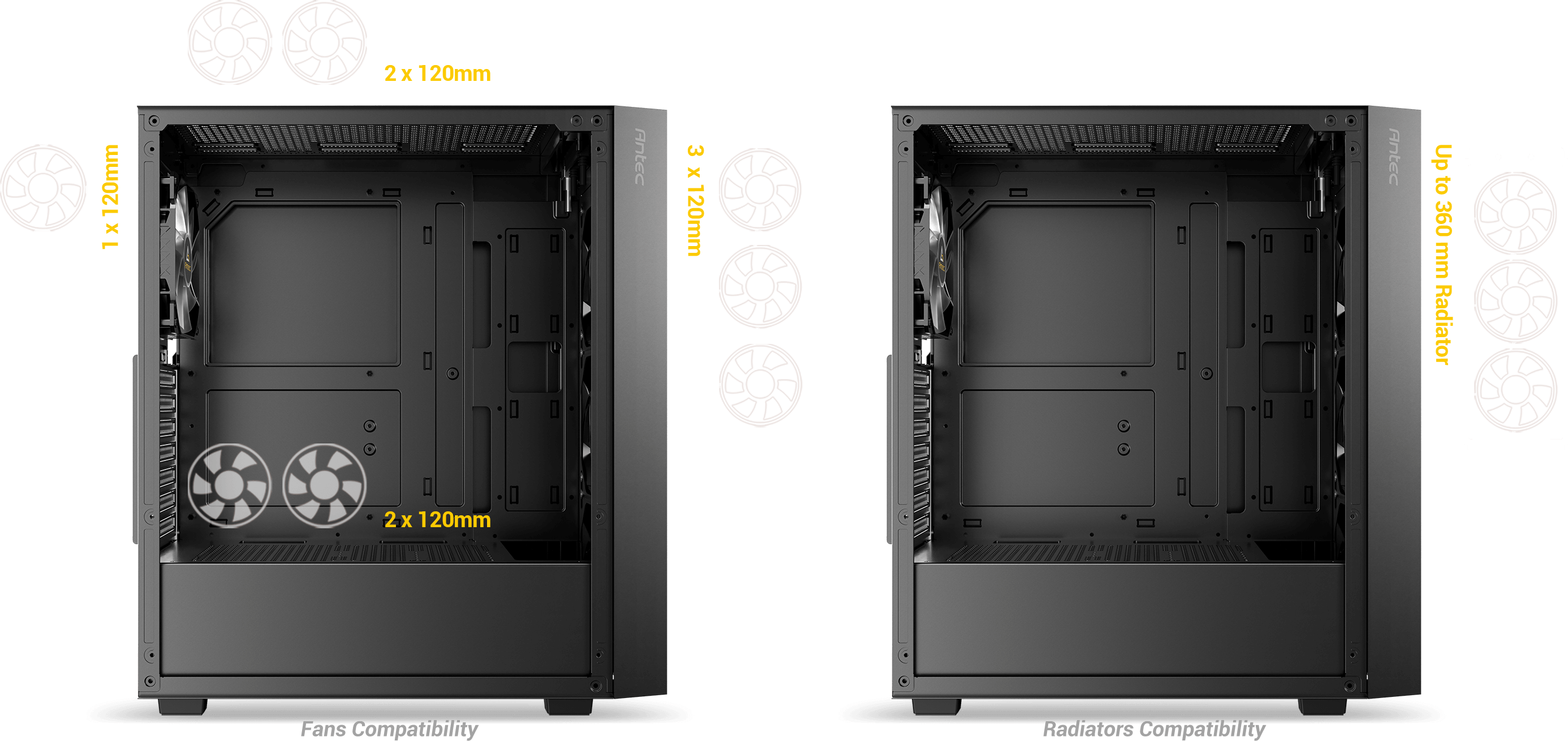

Up to 8 x 120mm Fans Simultaneously
Powerful Cooling Compatibility
Max. CPU Cooler Height : 160mm. Supports most of the high-end air coolers.

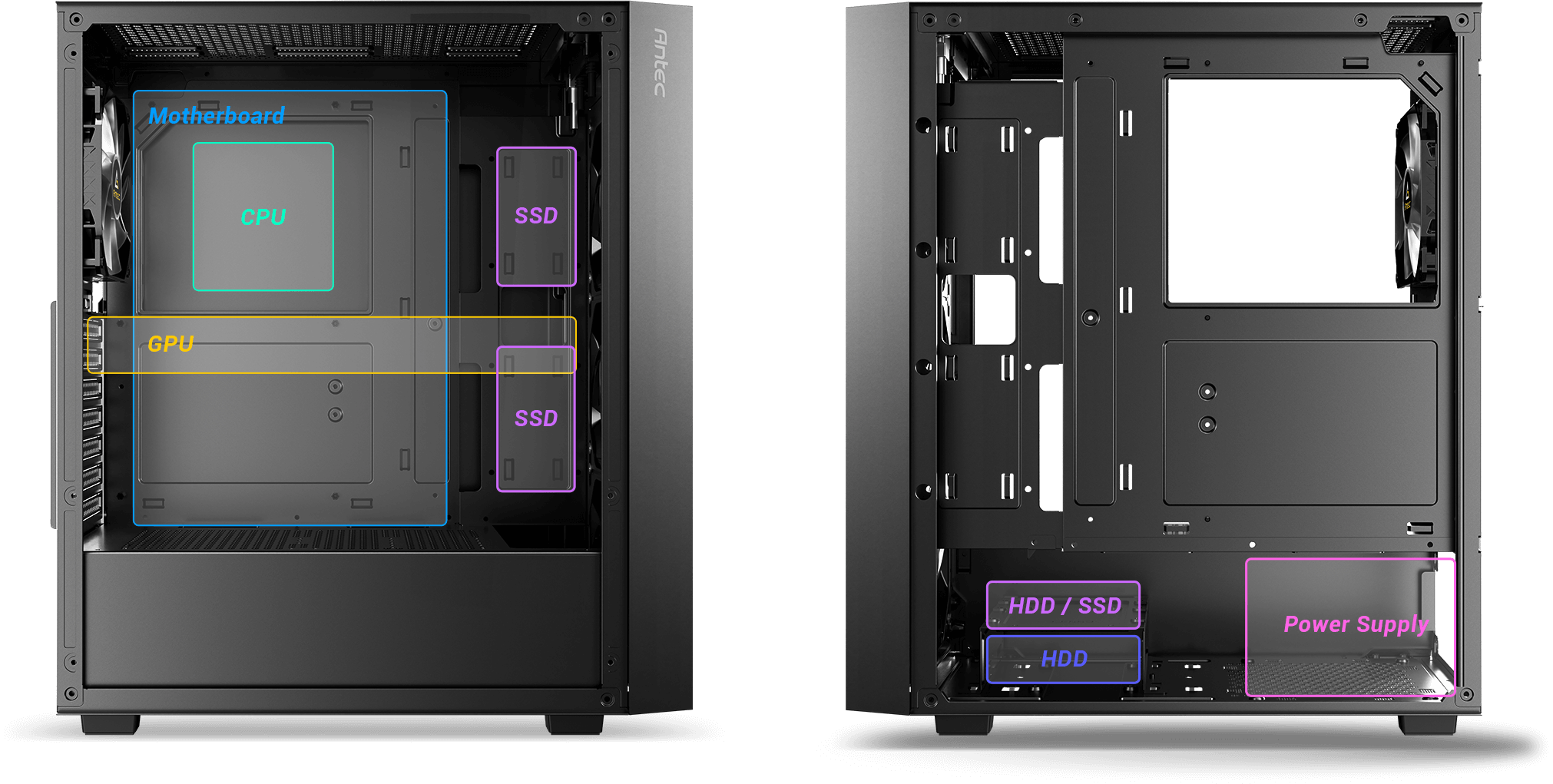

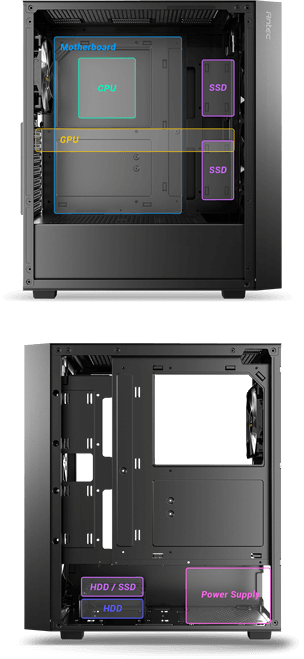

Compatibility
  • Motherboard support ATX, Micro-ATX, ITX
  • CPU cooler max height ≤ 160 mm
  • GPU max length ≤ 345mm (When the fan is installed in the front) /
    ≤ 320mm (When the fan is installed at the rear) /
    ≤ 290mm (when a 360mm radiator is installed in the front)
  • 3.5" / 2.5" Drive Mounts 2/1
  • 2.5" 2
  • Power Supply max length (Include cable)≤ 165mm (with HDD) /
    (Include cable)≤ 205mm (with HDD moves to the left) /
    (Include cable)≤ 345mm (without HDD)
Unlimited Performance
Max. GPU Length
: ≤ 345mm (When the fan is installed in the front) /
≤ 320mm (When the fan is installed at the rear) /
≤ 290mm (when a 360mm radiator is installed in the front)
Dimensions
400 x 200 x 449mm (DWH)
SPECIFICATIONS
main spec
Dimensions 400 x 200 x 449mm(DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO
Side Panel 4mm Tempered glass
Drive Bays
Expansion Slots 7
3.5" / 2.5" 2 / 1
2.5" 2
Fan Support
Front 3 x 120mm
Top 2 x 120mm
Power supply 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB 3-Pin fans in the front + 1 x 120mm ARGB 3-Pin fan at the rear
Radiator Support
Front 120 / 240 / 360mm
Clearance
Max GPU Length ≤ 345mm (When the fan is installed in the front)
≤ 320mm (When the fan is installed at the rear)
≤ 290mm (when a 360mm radiator is installed in the front)
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 165mm (with HDD)
(Include cable) ≤ 205mm (with HDD moves to the left)
(Include cable) ≤ 345mm (without HDD)
Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.59 Kg
Gross Weight 5.43 Kg
Warranty 1 Year
UPC# 0-761345-10206-3
