AX67
Mid-Tower Gaming Case
Unique Design &
Powerful Heat
Dissipation

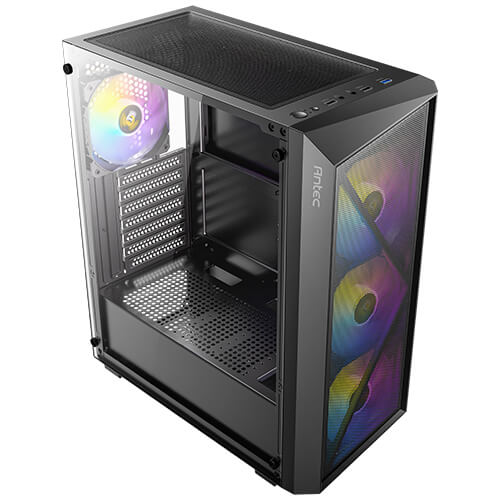

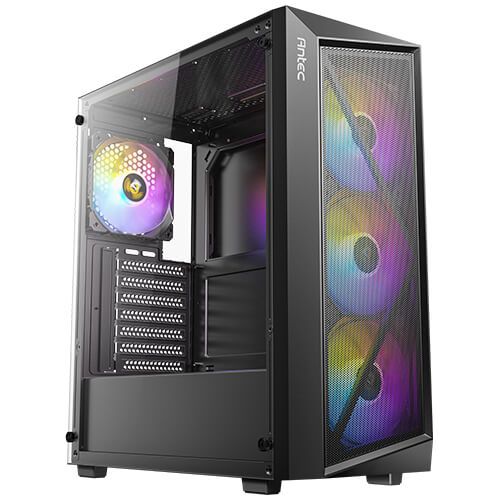

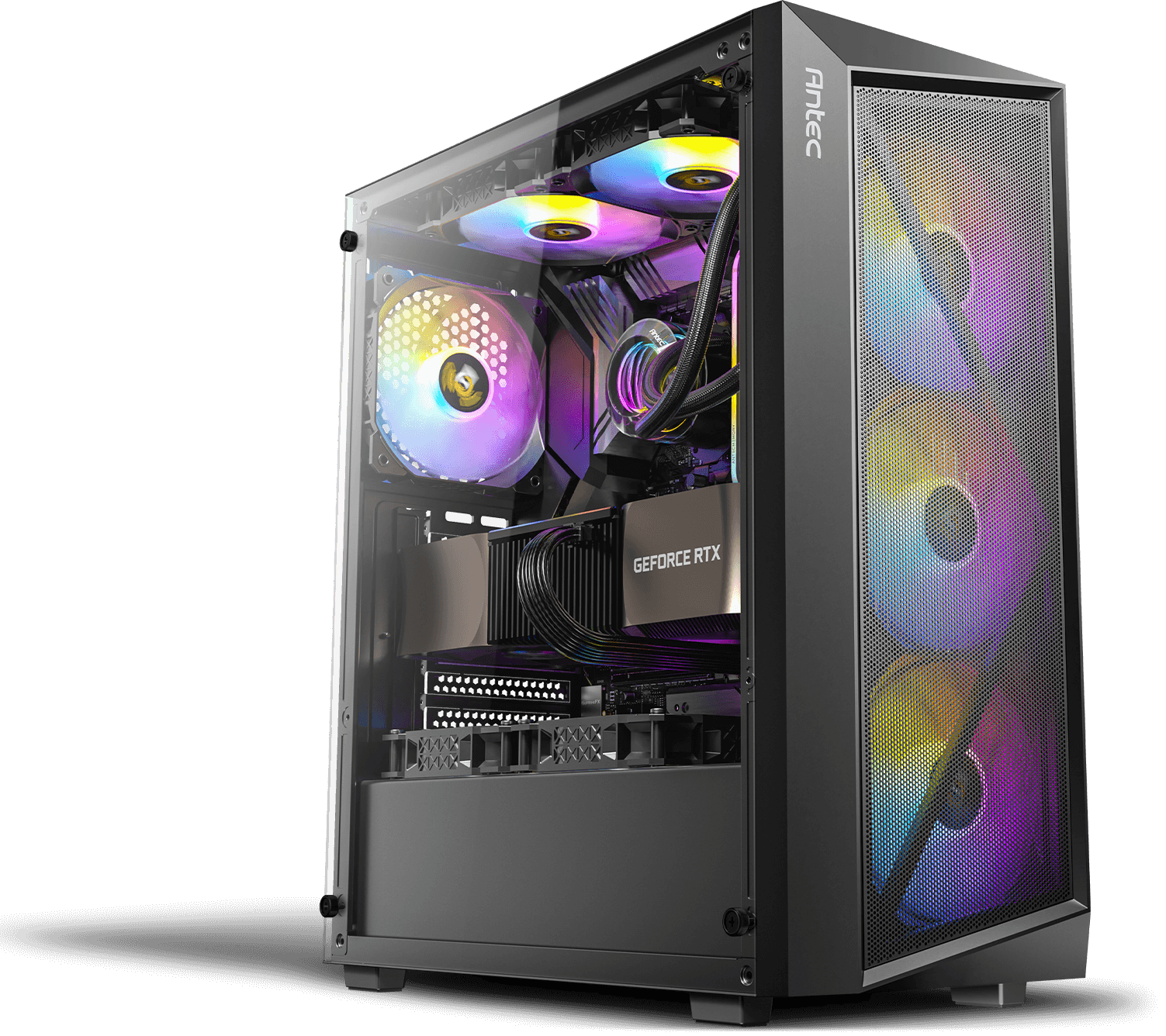

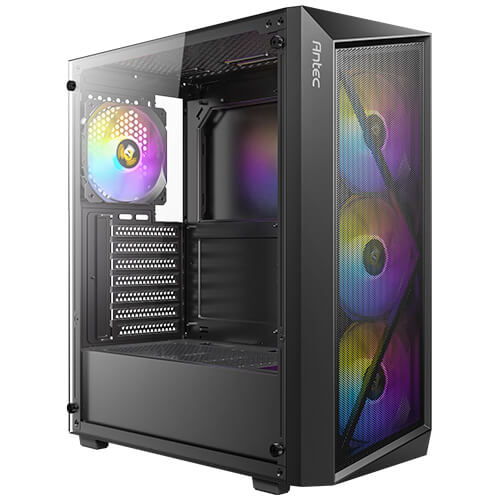

The AX67 ARGB features a unique design and excellent cooling performance. Its full tempered glass side panel offers an unobstructed view of your gaming setup, while vibrant ARGB lighting enhances the experience with dynamic visual effects.

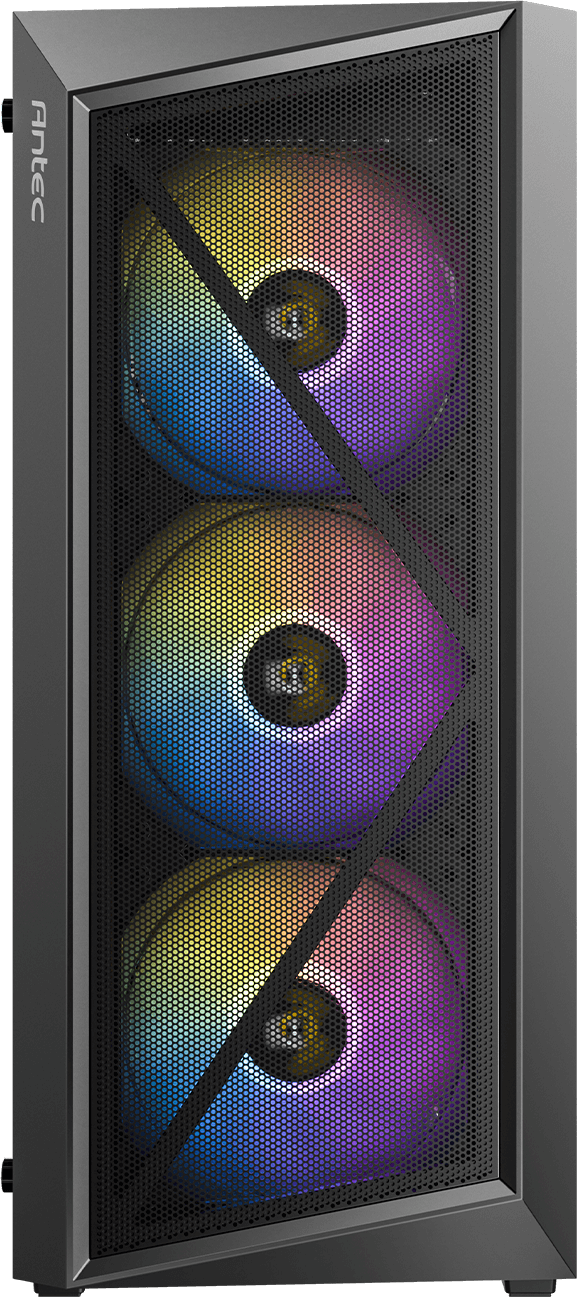

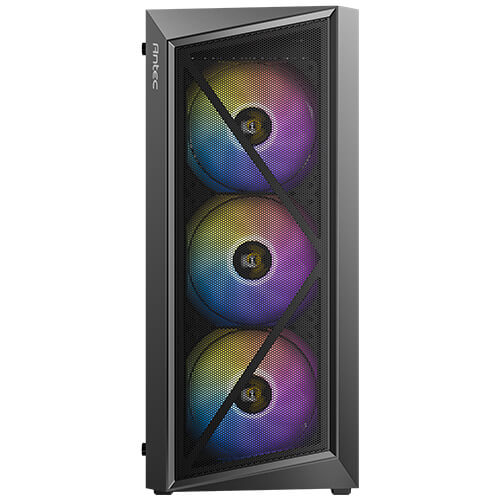

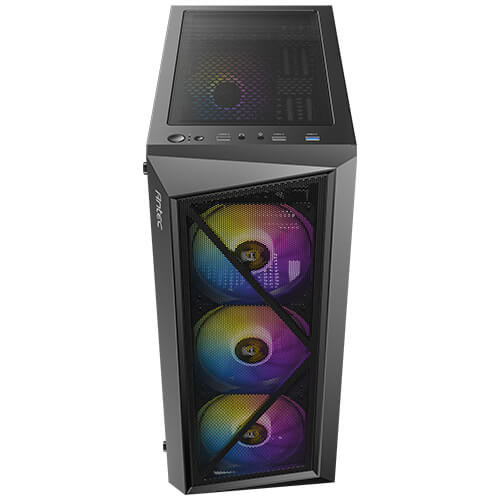

Stylish Geometric Mesh
Front Panel
Designed for superior airflow, the mesh front panel enhances cooling efficiency while maintaining a stylish geometric aesthetic.
High-Airflow
Front Panel
All-round airflow paths provide highly efficient cooling.
Air intakes at the front and bottom ensure outstanding heat dissipation.

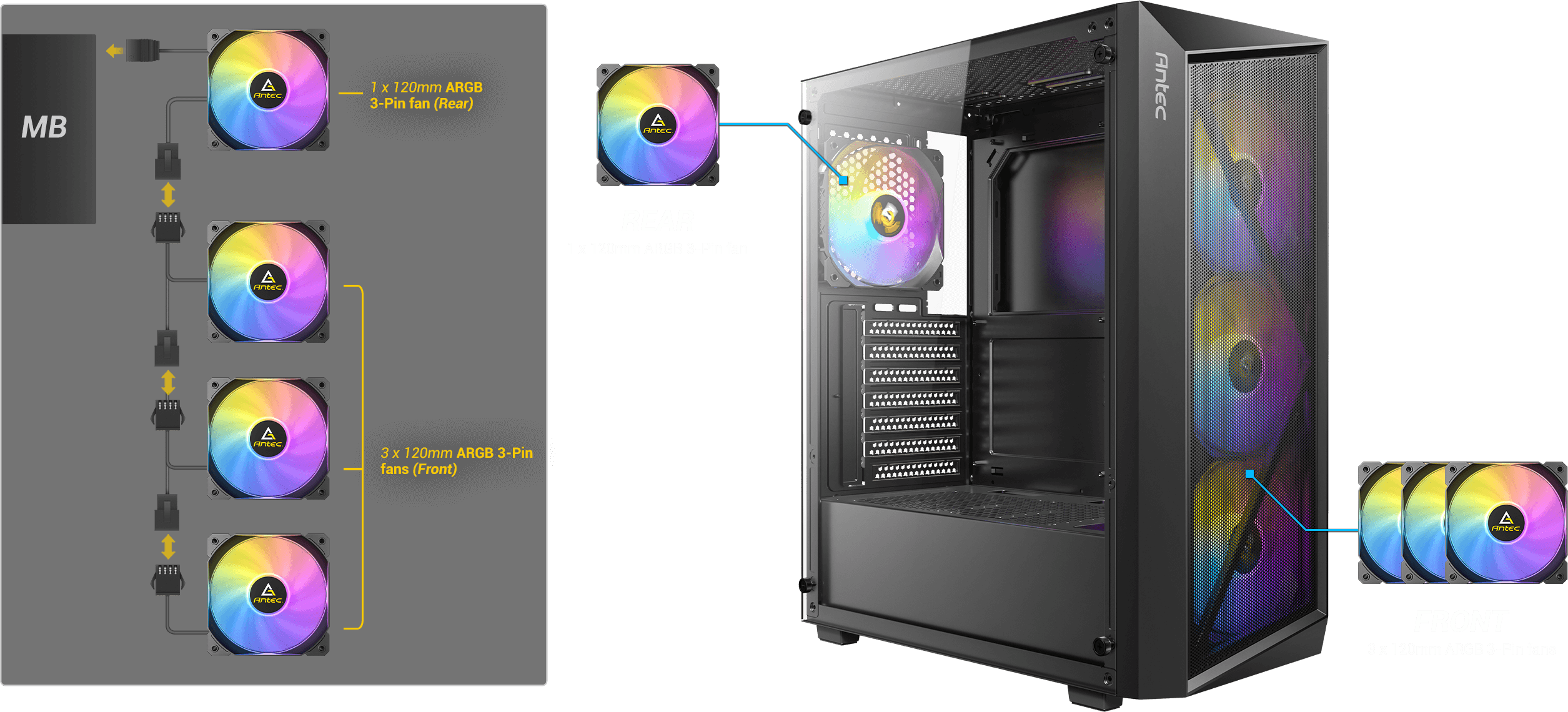

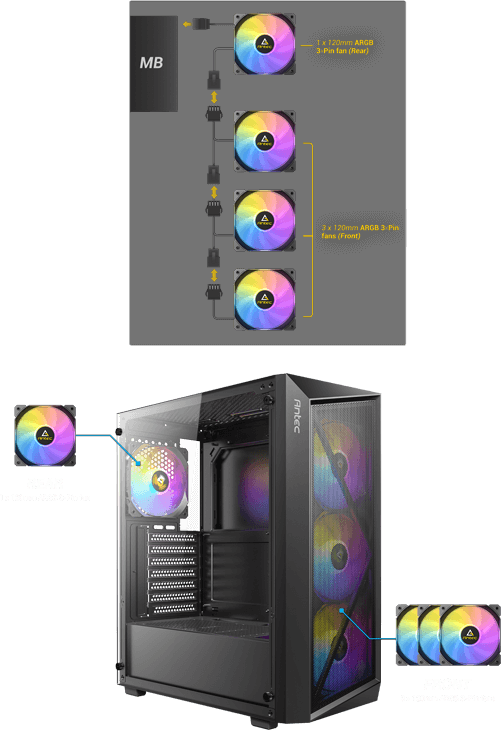

Pre-Installed
4 x 120mm ARGB fans
Work in sync with the motherboard.

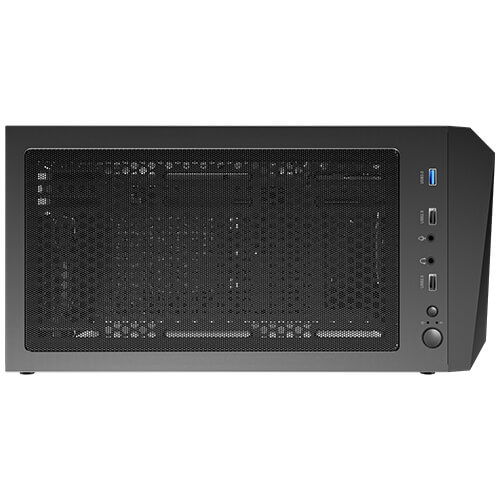

I/O Panel
Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO

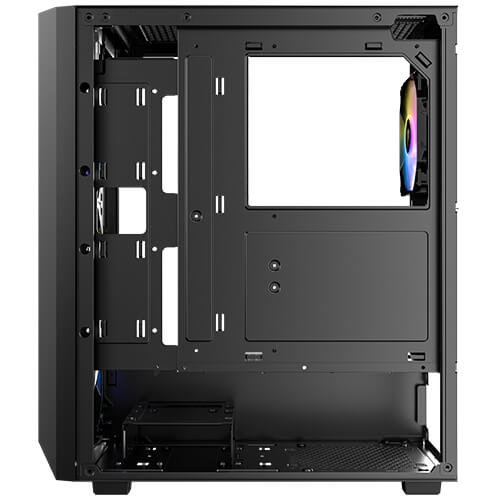

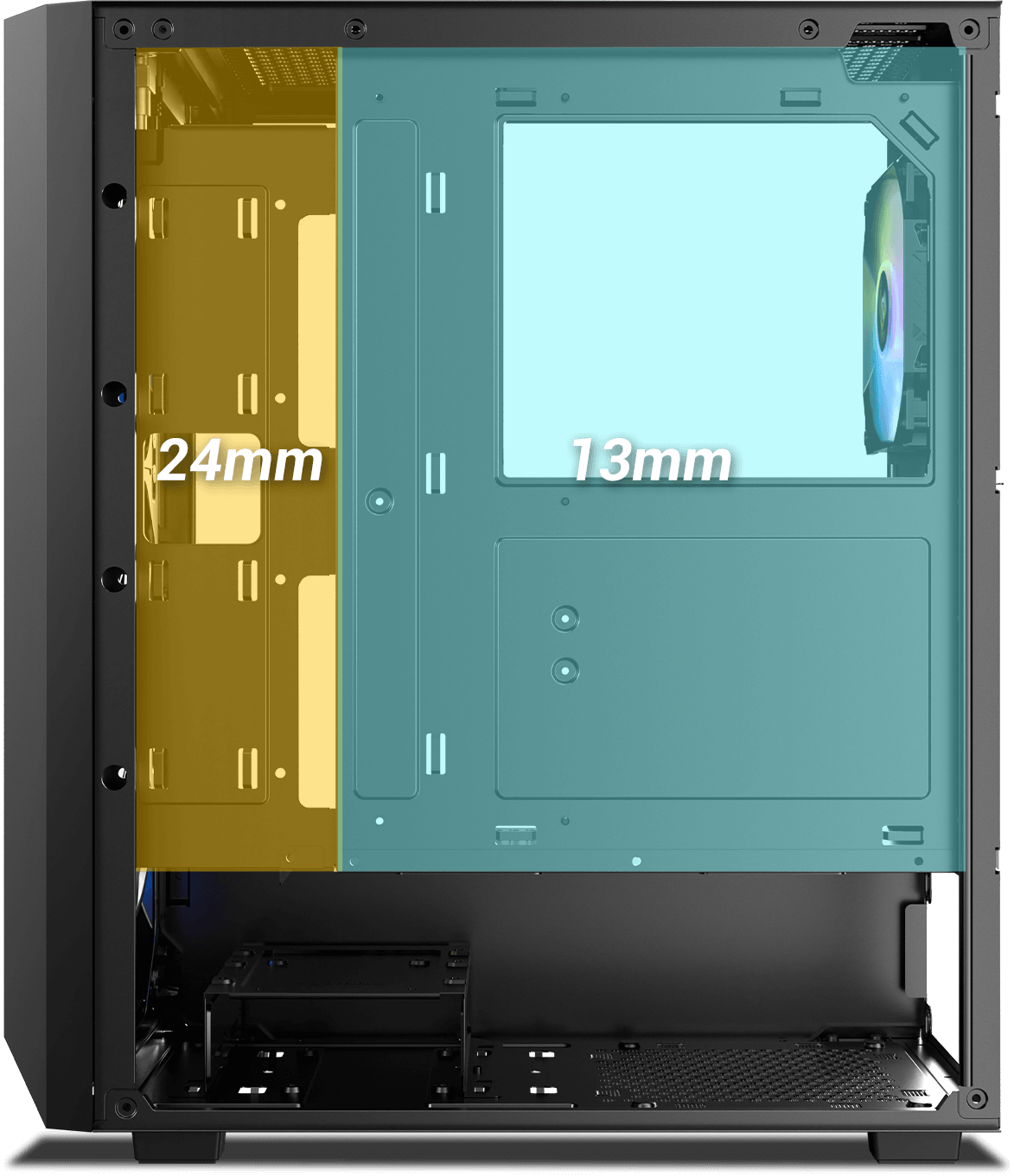

Neat Build
within Reach
Featuring a 24mm left-side and 13mm right-side cable routing depth, ensuring a well-organized PC build with a neat look.

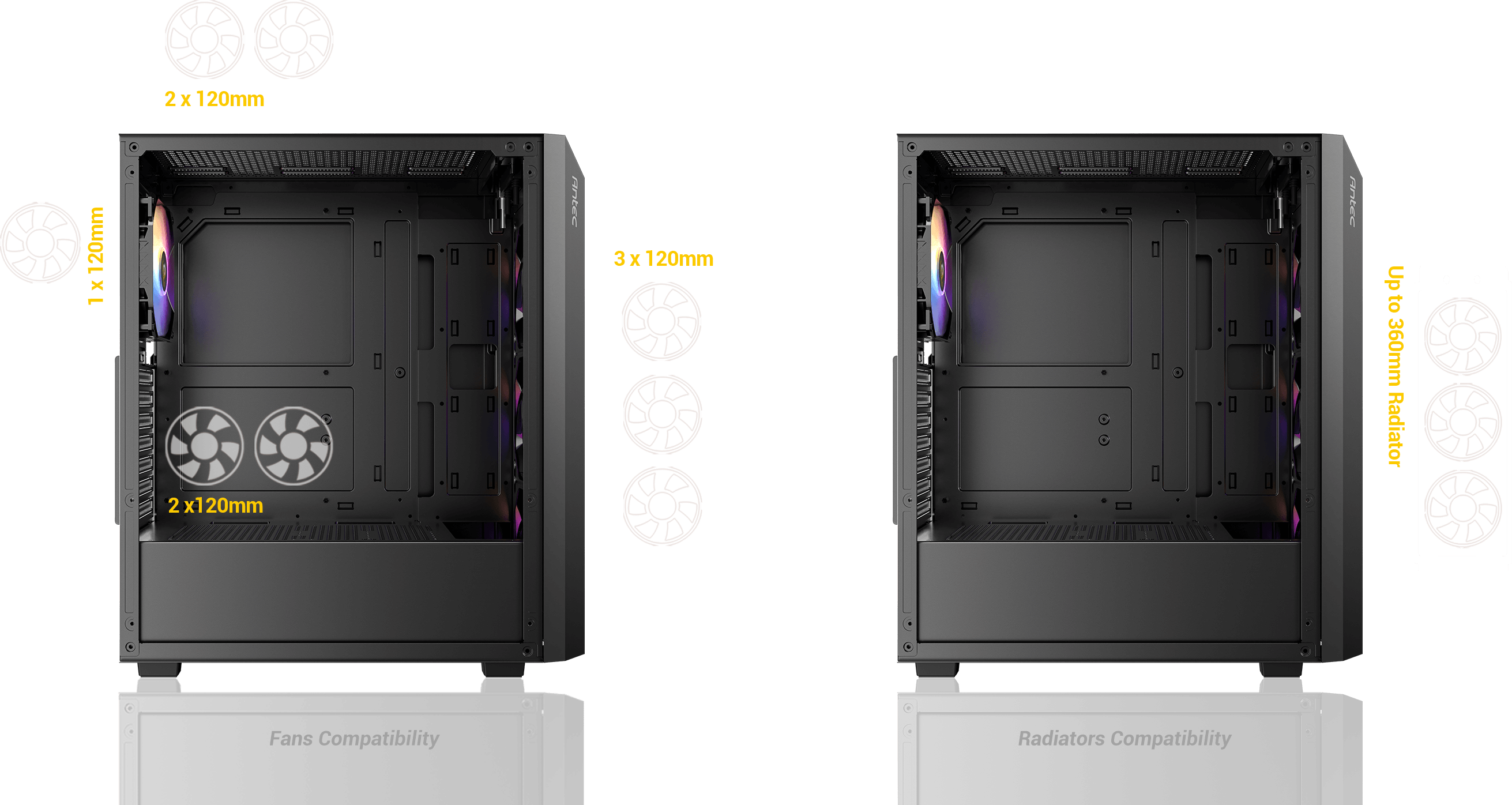

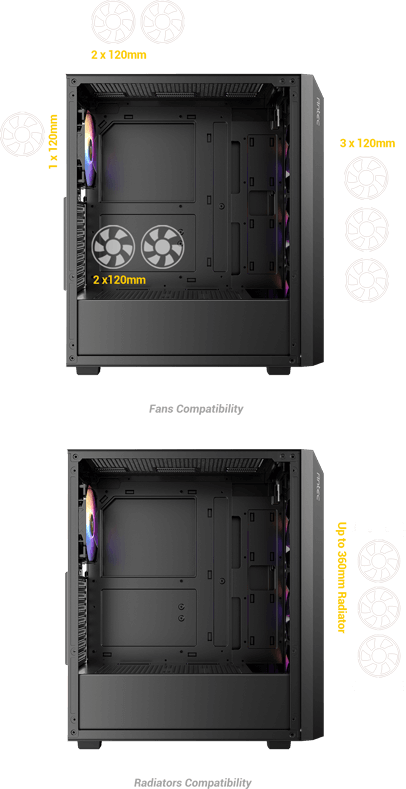

Up to 8 x 120mm Fans Simultaneously
Powerful Cooling Compatibility
Max. CPU Cooler Height : 160mm. Supports most of the high-end air coolers.

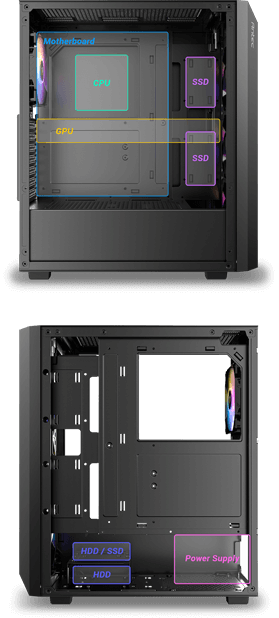

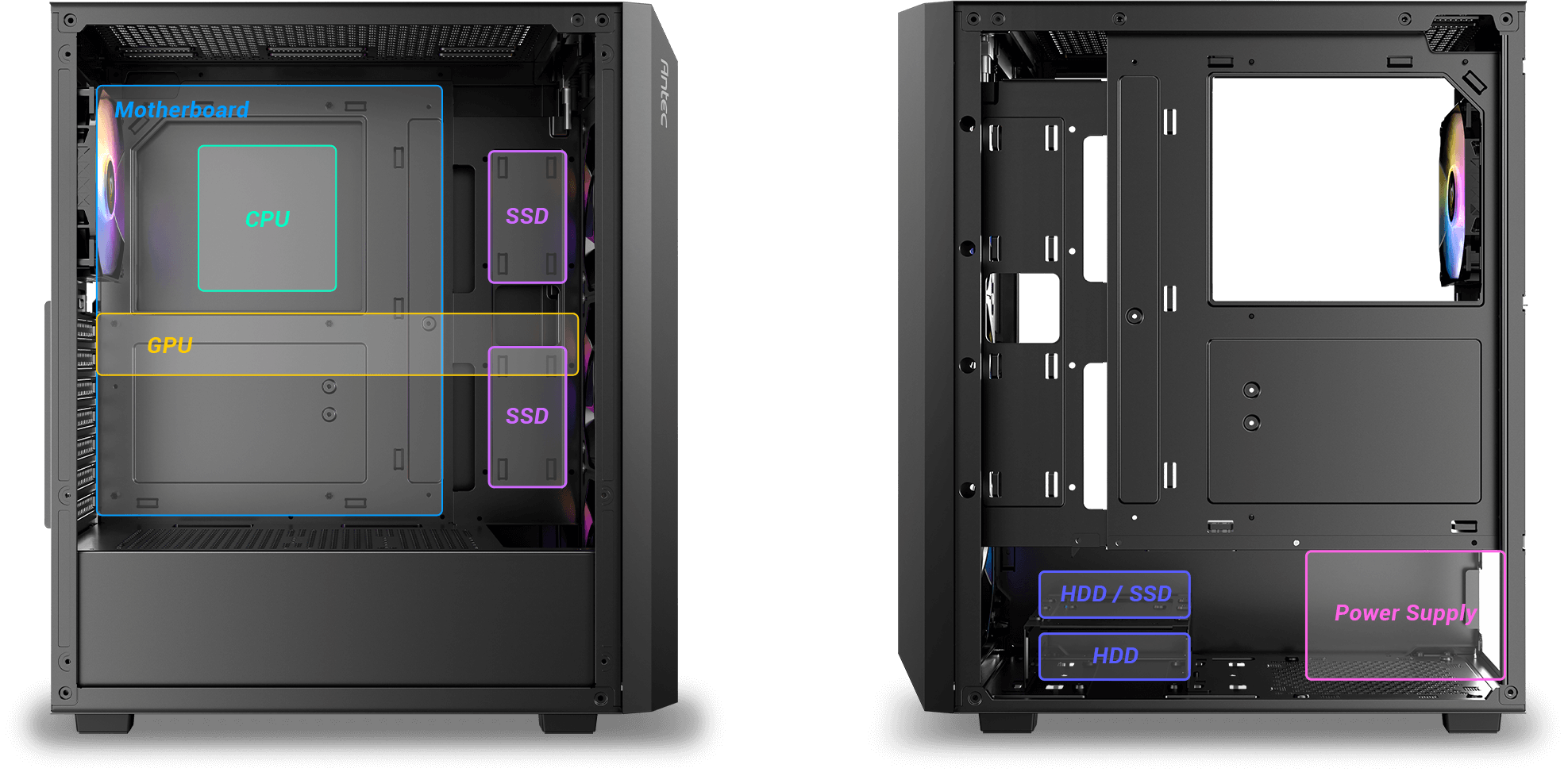

Compatibility
  • Motherboard support ATX, Micro-ATX, ITX
  • CPU cooler max height ≤ 160 mm
  • GPU max length ≤ 345mm (When the fan is installed at the front) /
    ≤ 320mm (When the fan is installed at the rear) /
    ≤ 290mm (When a 360mm radiator is installed in the front)
  • 3.5" / 2.5" Drive Mounts 2/1
  • 2.5" 2
  • Power Supply max length (Include cable)≤ 165mm (with HDD) /
    (Include cable)≤ 205mm (with HDD moves to the left) /
    (Include cable)≤ 345mm (without HDD)
Unlimited Performance
Max. GPU Length :
≤ 345mm (When the fan is installed in the front) /
≤ 320mm (When the fan is installed at the rear) /
≤ 290mm (when a 360mm radiator is installed in the front)

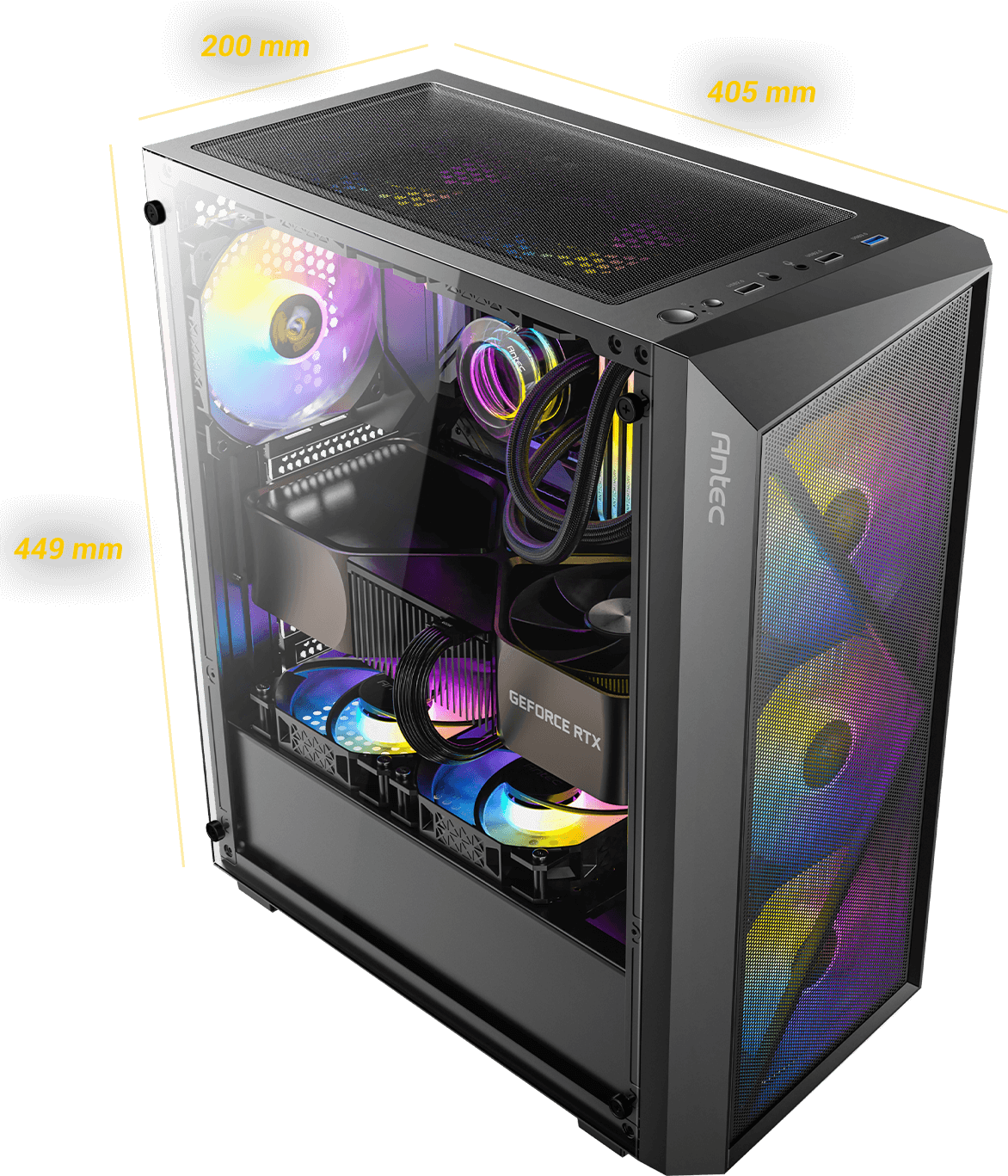

Dimensions
405 x 200 x 449mm (DWH)
SPECIFICATIONS
main spec
Dimensions 405 x 200 x 449mm(DWH)
Form Factor Mid Tower
Materials Steel+Plastic
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO
Side Panel 4mm Tempered glass
Drive Bays
Expansion Slots 7
3.5" /2.5" 2/1
2.5" 2
Fan Support
Front 3 x 120mm
Top 2 x 120mm
Power supply 2 x120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB 3-Pin fans in the front + 1 x 120mm ARGB 3-Pin fan at the rear
Radiator Support
Front 120 / 240 / 360mm
Clearance
Max GPU Length ≤ 345mm (When the fan is installed in the front)
≤ 320mm (When the fan is installed at the rear)
≤ 290mm (when a 360mm radiator is installed in the front)
Max CPU Cooler Height ≤160mm
Max PSU Length (Include cable)≤ 165mm (with HDD)
(Include cable)≤ 205mm (with HDD moves to the left)
(Include cable)≤ 345mm (without HDD)
Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.60 Kg
Gross Weight 5.44 Kg
Warranty 1 Year
UPC# 0-761345-10207-0
