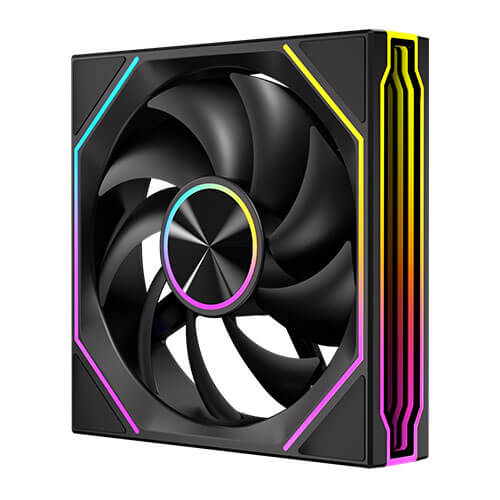

Infinity Matrix
120 ARGB PWM FAN
Extreme
Lighting Effects

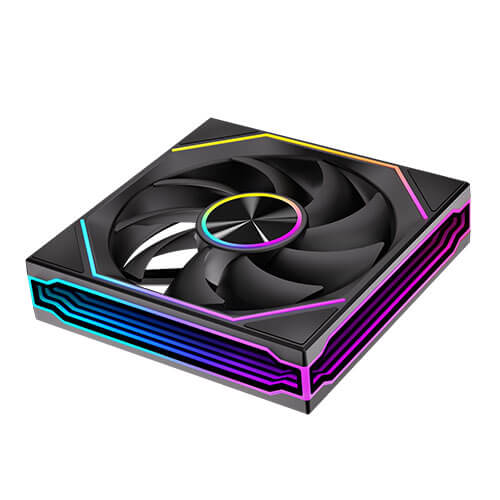

Four-sided infinity-mirror design combined with dual light strips and center ring lighting.
Four-Sided
Infinity Mirror Lighting
A multi-layer reflective structure that creates a three-dimensional light effect.
Dual Extended Light Strips
Smoother more refined lighting effects.

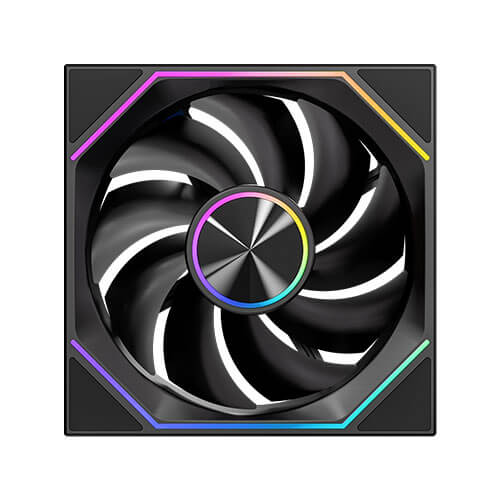

Full-ring ARGB Lighting at the Fan Center
Metallic Radial Pattern
Center sparkles with light, showcasing a premium feel.
800~1800 RPM ENABLED BY 4-PIN PWM
With a 4-pin PWM connector, the fan speed can be adjusted from 800 to 1800 RPM, providing airflow up to 46.43 CFM while maintaining low noise levels.
Intelligent PWM Control
High-performance PWM intelligent speed control for optimal cooling and quiet operation.
Anti-Vibration Pads
Anti-vibration pads for quiet, stable, and reliable performance.
Fan Installation
Fan Installation
Independent dual-cable design
Independent dual-cable design for cleaner and more flexible cable management.
Connect to the Motherboard
*Supports motherboards or controllers with ARGB control for 21 LEDS.

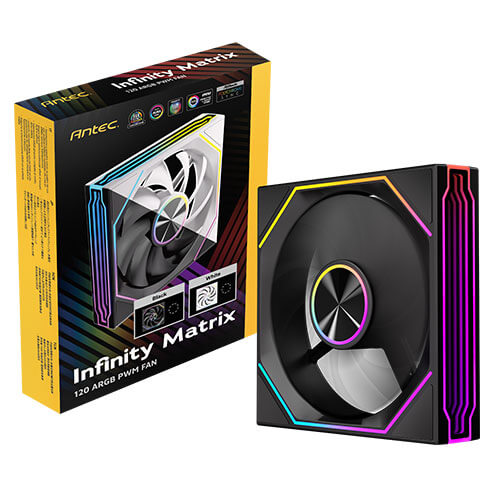

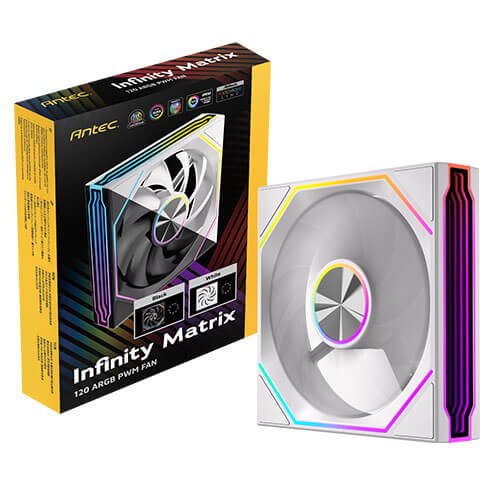

Package
SPECIFICATIONS
Fan Type
PWM Fan
Dimensions
120 x 120 x 28mm
Bearing Type
Hydraulic bearing
LED Type
Addressable RGB
Fan Speed
800±200~1800±10% RPM
Airflow
18.87~46.43 CFM
Air Pressure
0.32~1.69 mmAq
Fan Noise Level
10.8~32 db
Lifespan
40,000 hours
Connector
FAN: 4-pin(PWM) | LED: 3-pin

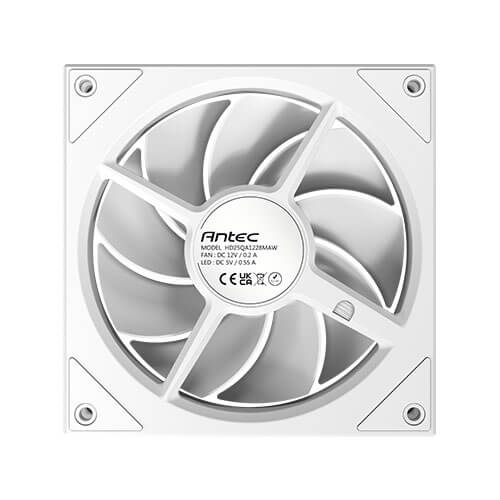

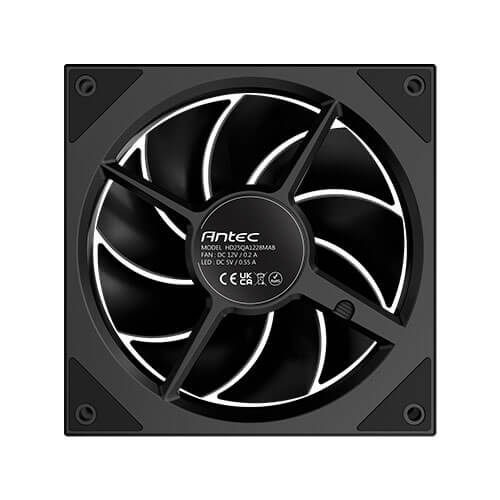

Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 10.5-13 V | LED: DC 4.5-5.5 V
Rated Current
FAN : 0.2 A | LED : 0.55 A
Warranty
2 years
Weight
Net weight: 0.2Kg Gross weight: 0.25 Kg
Box Dimensions
144 x 31 x 189mm
UPC

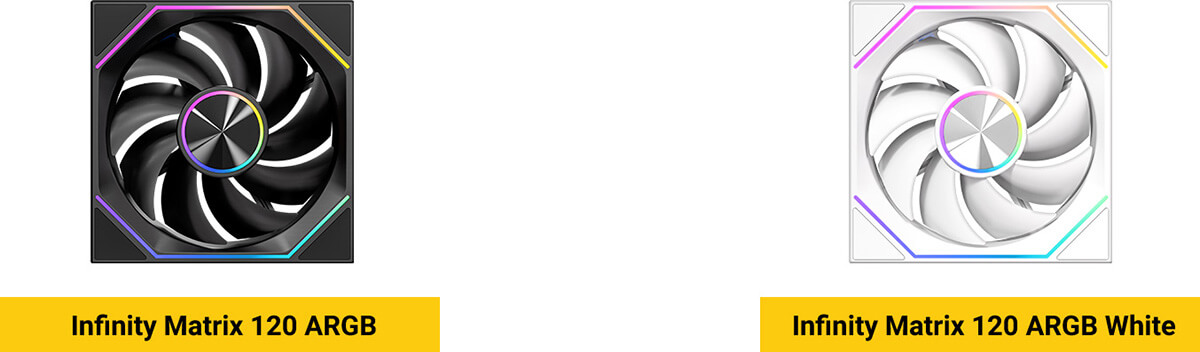

Infinity Matrix 120 ARGB 0-761345-40079-4

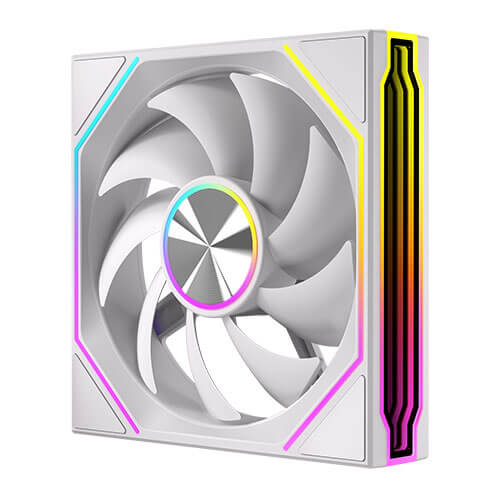

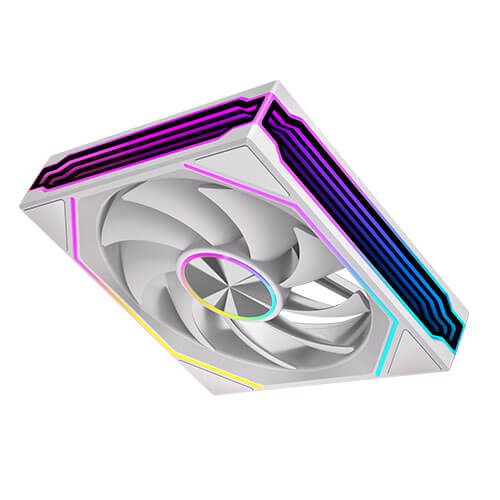

Infinity Matrix 120 ARGB White: 0-761345-40080-0

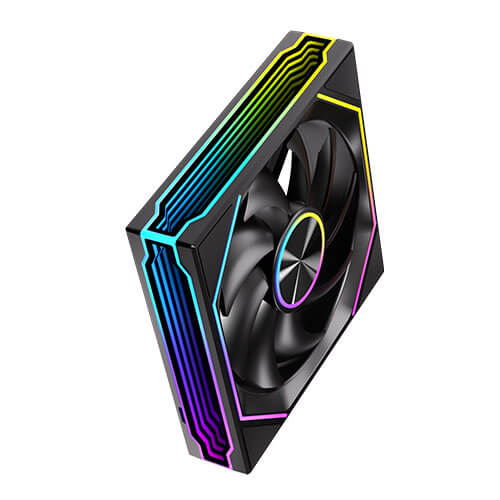

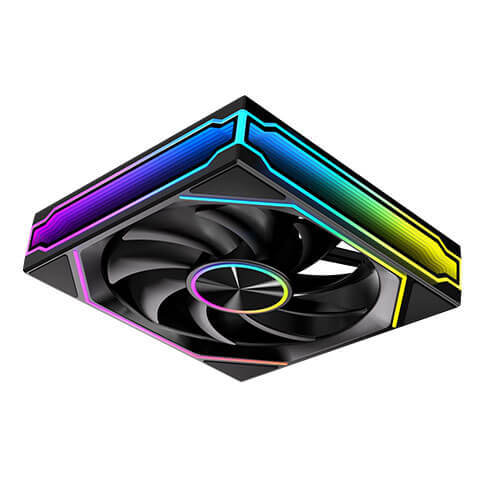

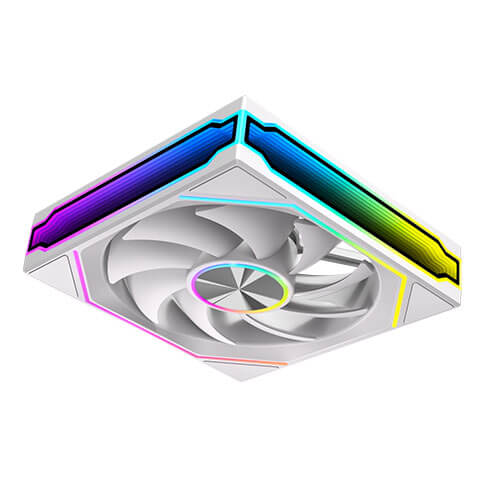

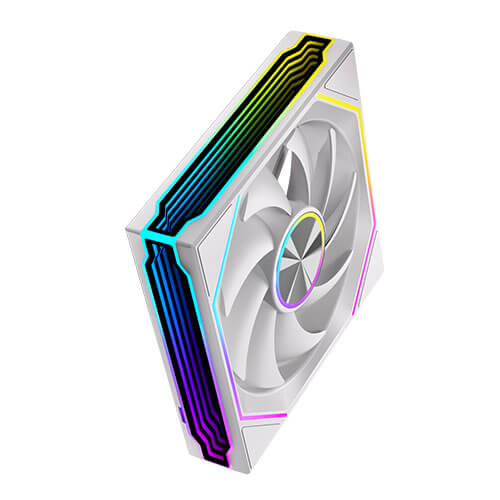

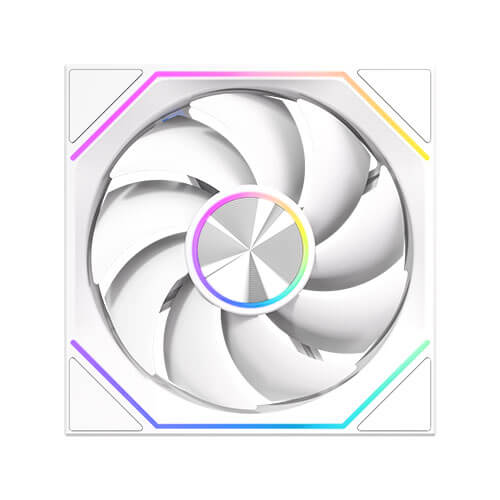

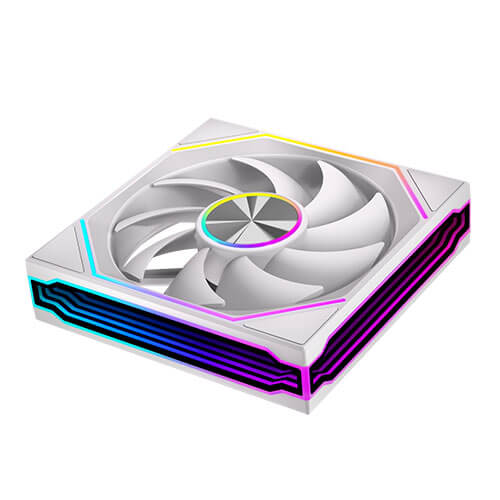

GALLERY
