Vision 120 ARGB
120 ARGB PWM FAN
Sleek ARGB
Linear Lighting
Showcase sleek ARGB linear effects on the front and sides of the fan frame for an elegant touch.

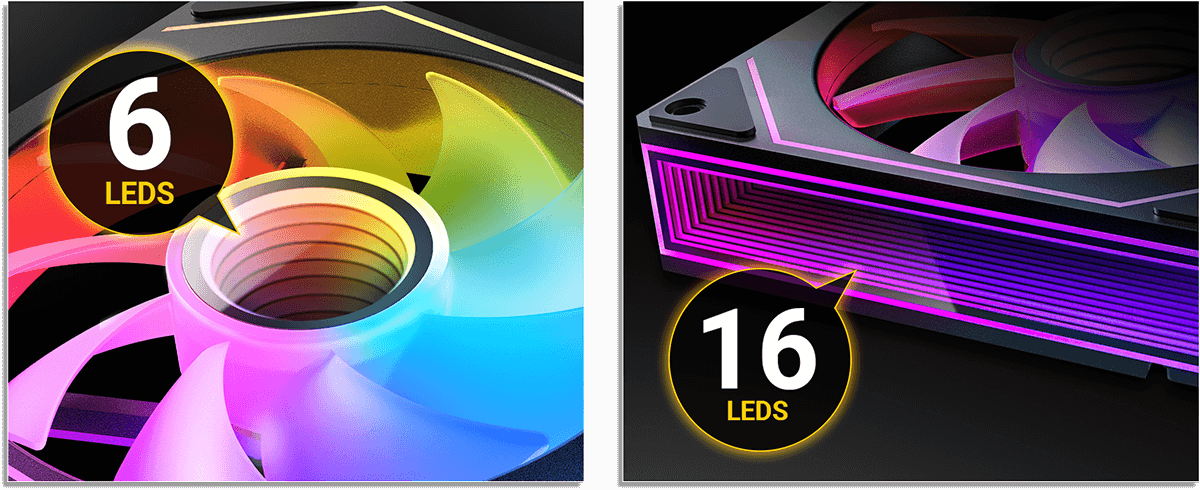

Infinity Mirror Design
Featuring an infinity mirror design with 6 LEDs at the center and 16 LEDs on each side, this lighting elevates your PC build's aesthetics with ultimate ARGB brilliance.

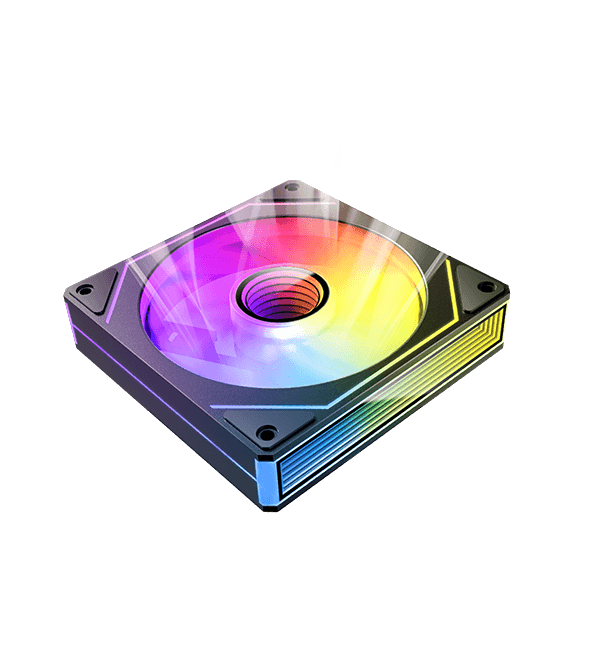

Gorgeous and
Various Display
Effects
Maximized ARGB infinity lighting along the frame, providing an immersive and dynamic illumination experience.
Silent Case Fans
With 8 silicone Rubber Anti-Vibration Pads, maintaining noise levels ≤ 29 dB(A) under the fan's maximum 1800 RPM.
800~1800 RPM Enabled by 4-Pin PWM
With a 4-pin PWM connector, the fan speed can be adjusted from 800 to 1800 RPM, providing airflow up to 44.5 CFM while maintaining low noise levels.
30,000-Hour
Long-Life Bearing
Hydro bearing PC case fans operate at noise levels ≤ 29 dB(A), ensuring a quiet computing environment while offering smoother, quieter operation and enhanced durability (30,000 hours) by reducing friction and wear.
The way to Daisy Chain
Package
SPECIFICATIONS
Fan
Model Name Vision 120 ARGB (HD25PA1225MAB)
Fan Type ARGB PWM Fan
Dimensions 120 * 120 * 25 mm
Bearing Type Hydraulic Bearing
Fan Speed 800 ± 10% ~ 1800 ± 10% RPM
Airflow 44.5 CFM
Air Pressure 1.36 mmH₂O
Fan Noise Level 29 dB(A)
Lifespan 30,000 / hrs 25°C
Connector Fan: 4-pin PWM | ARGB : 3-pin
Rated Voltage Fan : DC 12V / ARGB : DC 5V
Operating Voltage Fan : DC 6 ~ 13.2V / ARGB : DC 4.5 ~ 5.2V
Rated Current Fan : 0.22 ± 10%A / ARGB : 0.80 ± 10%A
UPC# 0-761345-40060-2
Warranty
1 year
