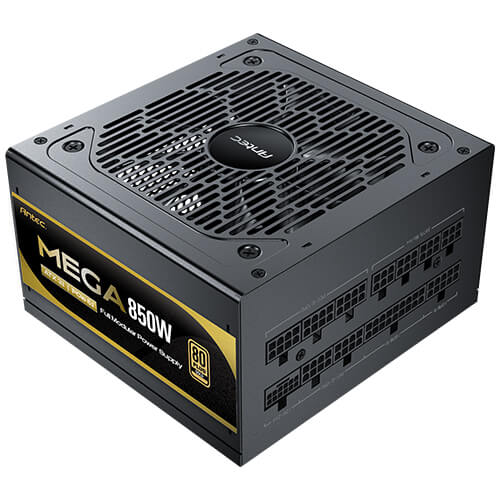

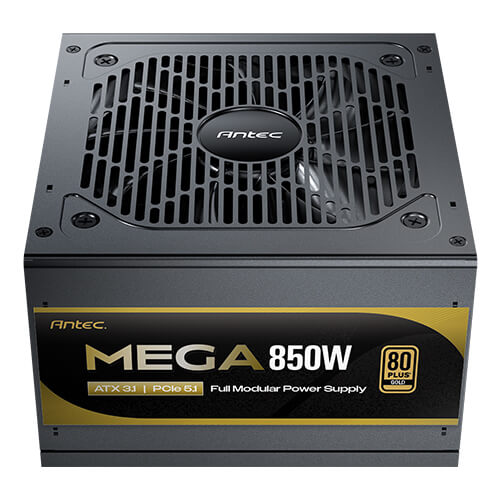

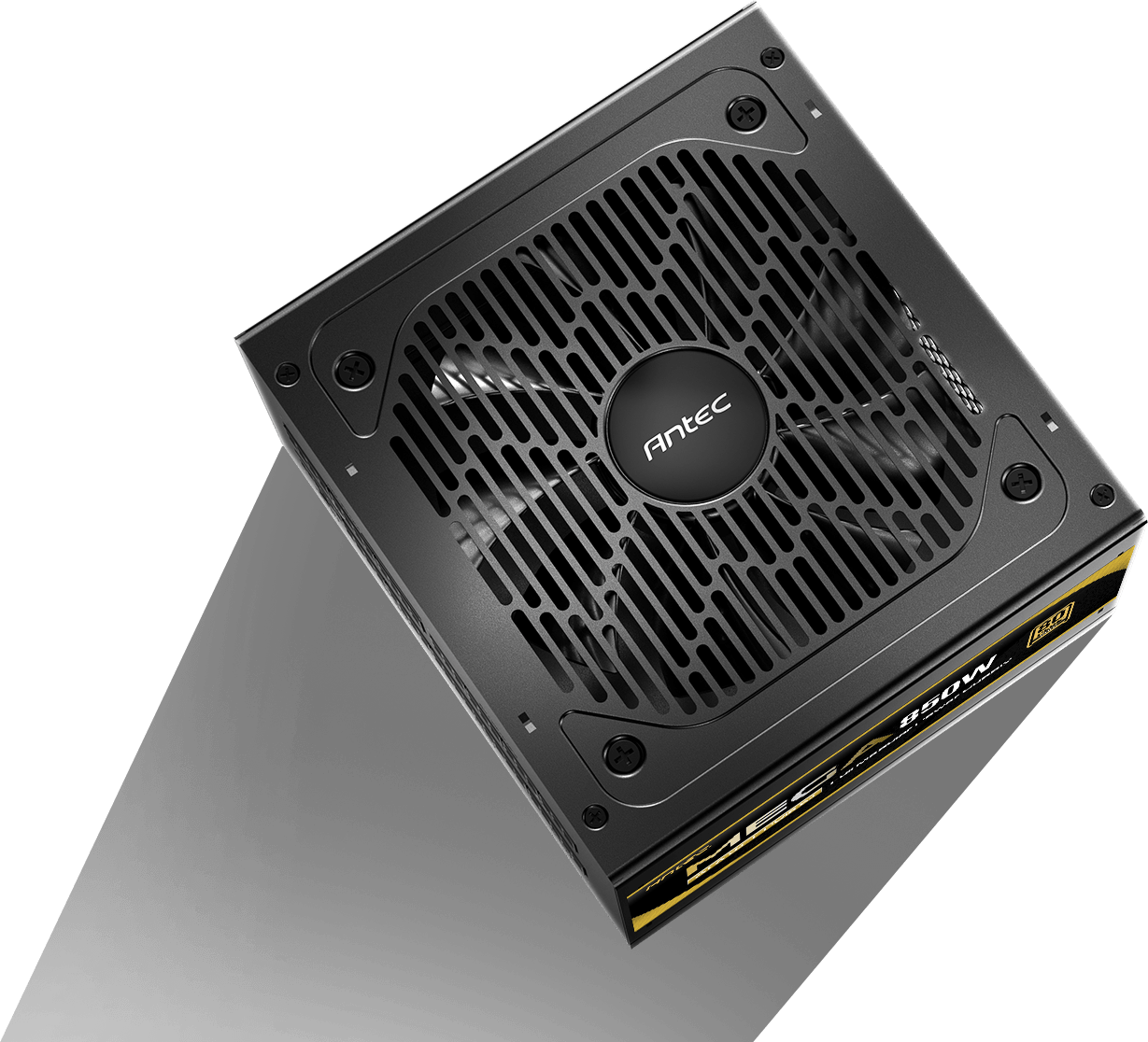

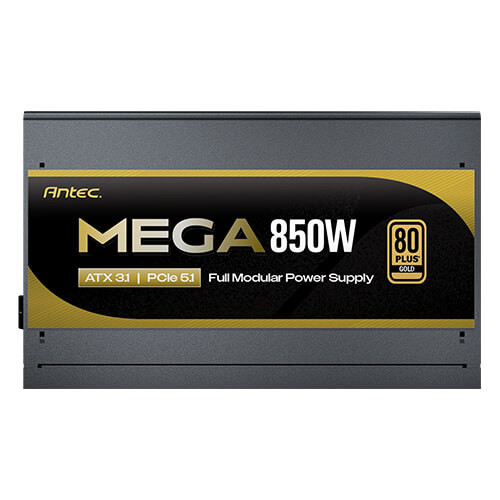

Full Modular Power Supply
MEGA
850W
ATX 3.1 & PCIe 5.1 Compatible
Our new MEGA ATX3.1 power supplies are formally certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance.
The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with the latest raphics cards.
80 PLUS® Gold certified
Up to 92% efficient to reduce your electricity bill
PhaseWaveTM Design
Introducing our PhaseWave™ Design, a server-class LLC design featuring synchronous rectification based on a DC-DC topology.
This design ensures unparalleled power delivery efficiency and stability for your system.
This design ensures unparalleled power delivery efficiency and stability for your system.
CircuitShieldTM
The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO ensuring the safety and reliability of your power supply in any situation.
7-Year Warranty
The new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.

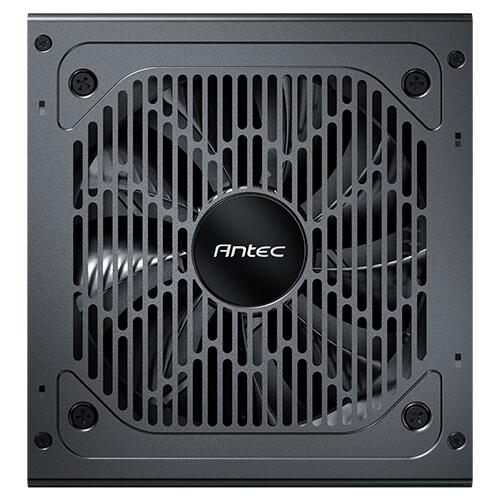

120mm HDB Silence Fan
The whisper-quiet, 120mm Hydraulic bearing fan provides high airflow with the durability and longevity that is a signature of Antec quality.

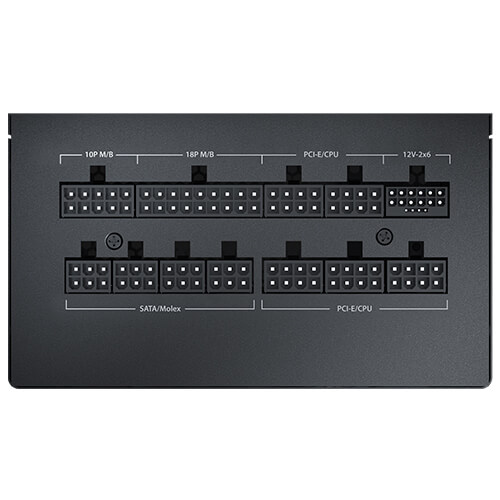

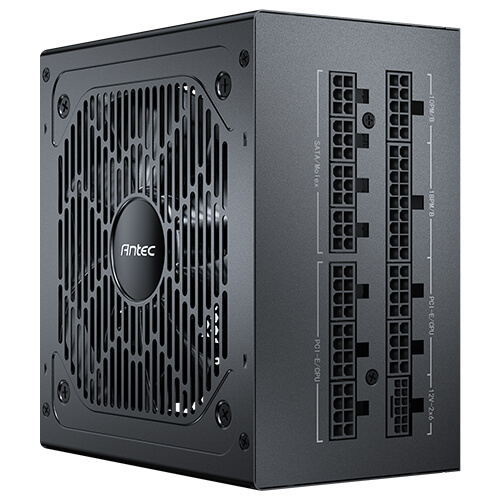

Full Modular
Cable Management
Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.
Compact Size
Compared to large power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.

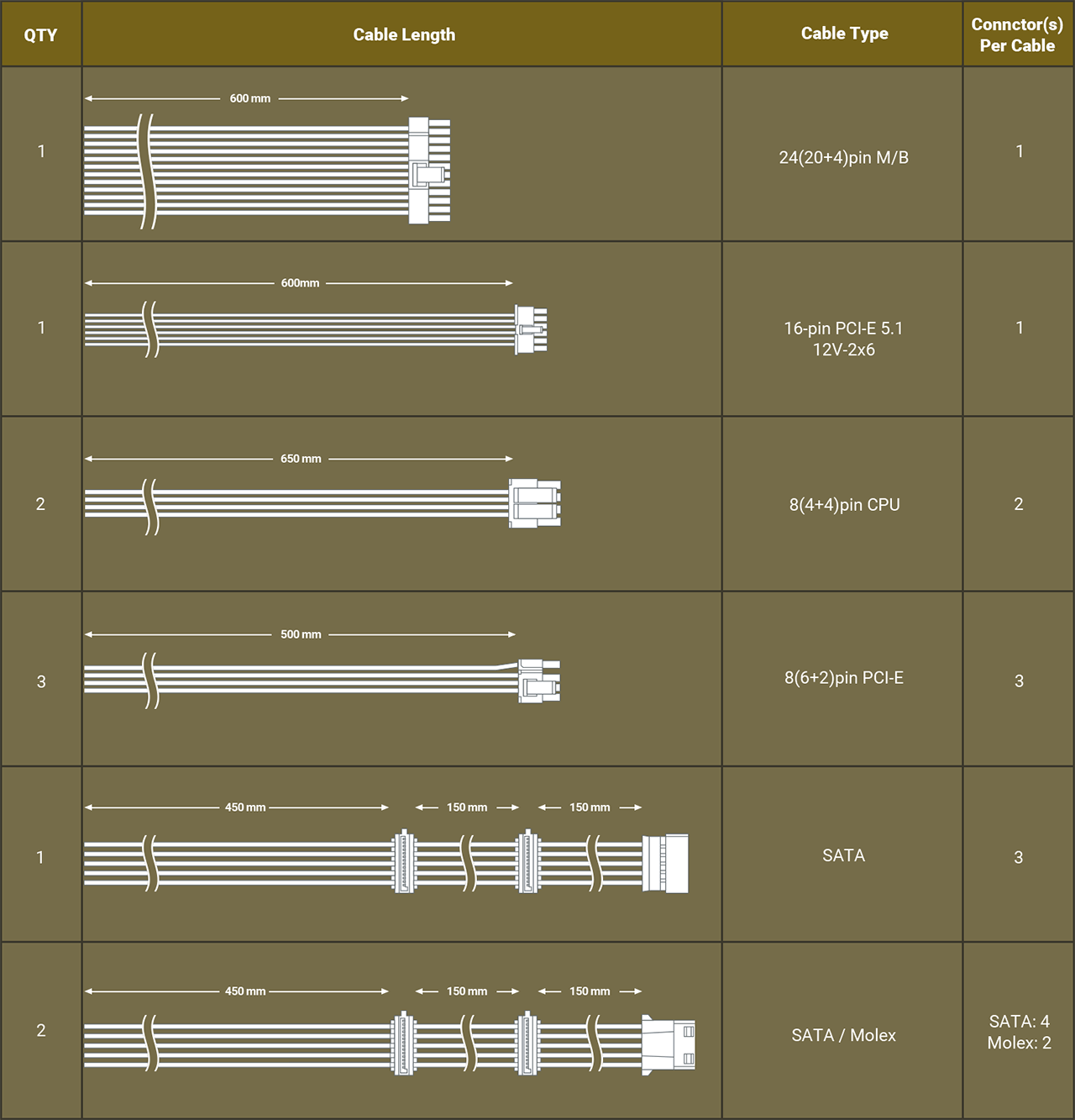

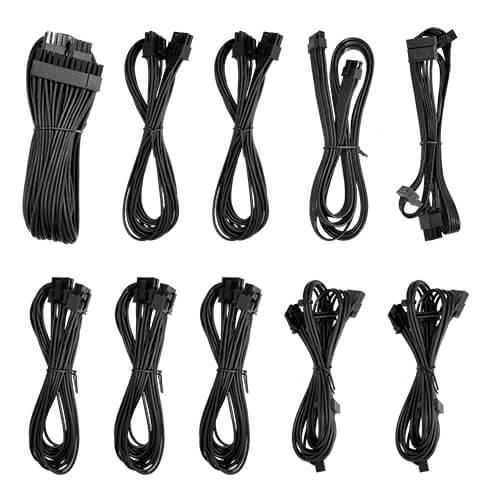

Cables

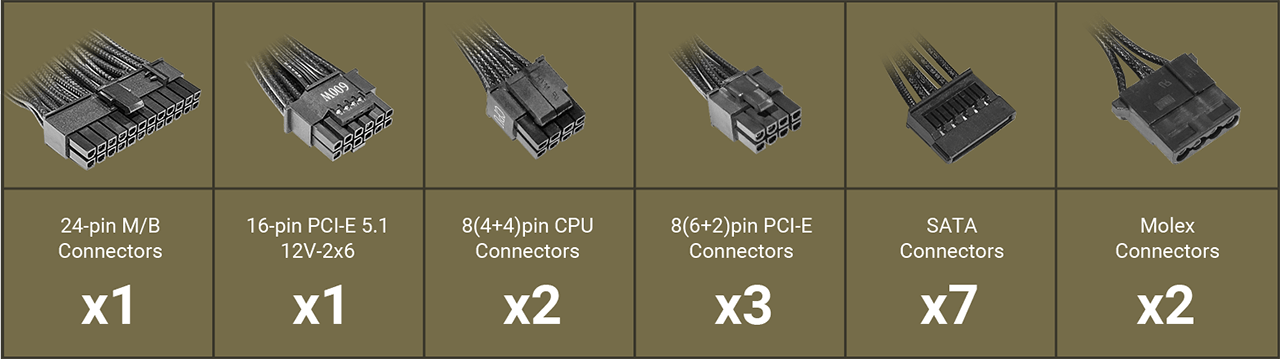

Connectors

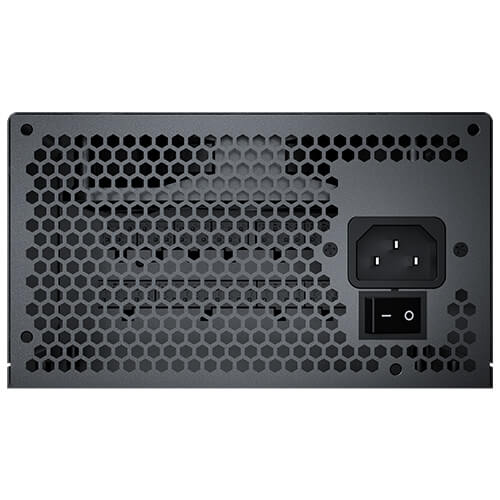

Input

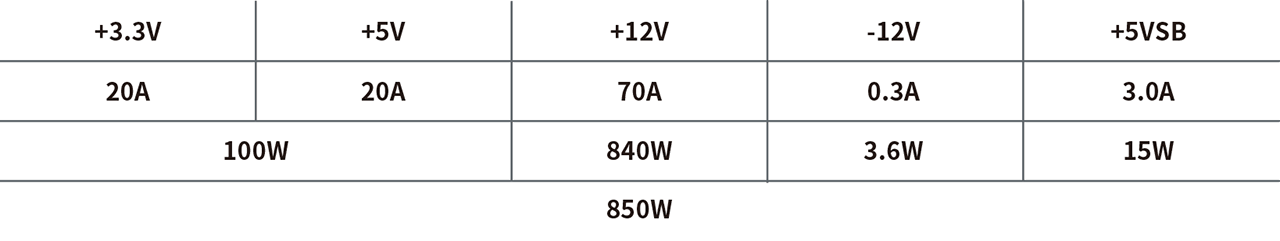

Output
SPECIFICATIONS
| Model | MEGA850 Gold |
| Safe Model | X7000A417MU-25 |
| Type | ATX 12V 3.1 |
| Dimension | 140(L) x 150(W) x 86(H) |
| Modular | Full-Modular |
| Warranty | 7 years |

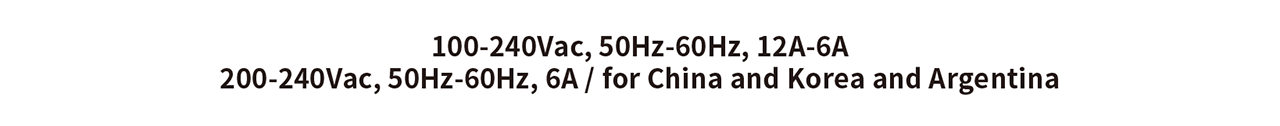

| Input Voltage | 100V-240V |
| Input Current | 12A-6A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | CB/CE |
| Fan | 120mm HDB Silent Fan |
| Certifications | 80 Plus Gold |
| Connector | 1 x 24(20+4)pin MB |
| 1 x 16(12+4)pin PCIE 5.1 12V-2x6 | |
| 2 x 8(4+4)pin CPU | |
| 3 x 8(6+2) Pin PCI-E | |
| 7 x SATA | |
| 2 x Molex | |
| Unit Box Dimensions | 300mm(L)*205mm(W)*126mm(H) |
| Shipping Box Dimensions | 655mm(L) x 330mm(W) x 220mm(H) |
| Net Weight | 1.27kg |
| Gross Weight | 2.39kg |
| UPC# | 0-761345-20183-4 MEGA850 AR 0-761345-20184-1 MEGA850 EC 0-761345-20185-8 MEGA850 GB 0-761345-20186-5 MEGA850 US |
