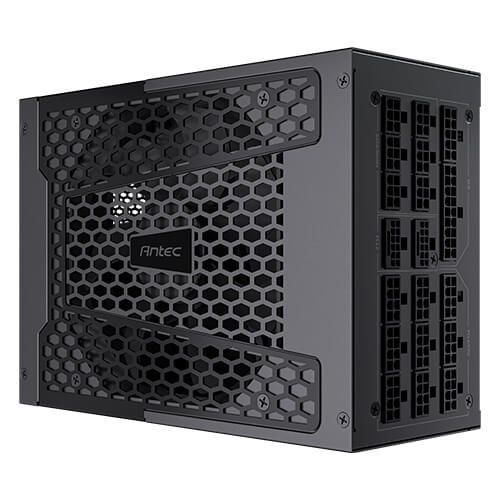

Signature 2200
Platinum ATX 3.1

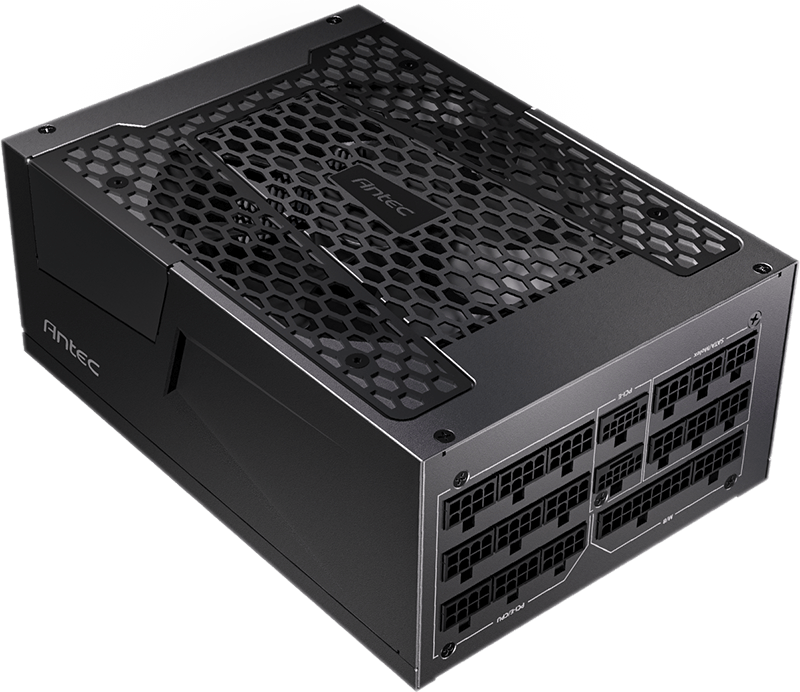

Introducing the Signature 2200 Platinum ATX 3.1 Power Supply. The Signature 2200 Platinum ATX3.1 is Antec’s high-performance ATX 3.1 power supply,designed to support modern, power-demanding systems. It features key industry standards including ATX 3.1 and PCIe 5.1 compliance, 100% high-quality Japanese capacitors, fully modular cabling, and up to 94% efficiency certified by 80 PLUS® Platinum. Built for reliability and efficiency, the Signature 2200 is a solid foundation for advanced PC builds.
With robust GPU support, server-grade PhaseWave™ design, and quiet thermal performance, this power supply is engineered for AI computing, professional workloads, workstations, and next-generation PC enthusiasts. Delivering reliable, high-efficiency power, it’s ideal for AI-driven applications.
With robust GPU support, server-grade PhaseWave™ design, and quiet thermal performance, this power supply is engineered for AI computing, professional workloads, workstations, and next-generation PC enthusiasts. Delivering reliable, high-efficiency power, it’s ideal for AI-driven applications.
ATX 3.1 & PCIe 5.1 Compatible
Fully compliant with the latest ATX 3.1 standard, the Signature 2200 ensures top-tier reliability and power efficiency. The bundled PCIe 5.1 12V-2x6 GPU cables provide robust support for modern high-performance graphics cards.

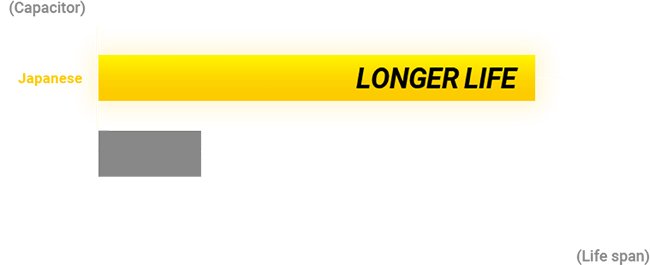

100% High-Quality JP Capacitors
Built entirely with premium Japanese capacitors, the Signature 2200 Platinum ATX3.1 delivers ultra-tight voltage regulation, minimal ripple, and long-term stability.
PhaseWave TM Design
Server-grade full-bridge LLC architecture with synchronous rectification and DC-DC topology ensures consistently efficient and stable power delivery across all rails.
CircuitShieldTM
The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, providing the best dependability for your power supply in any situation.
12-Year Warranty
Pushing the standard for excellence with the full-suite industrial protections, backed by a 12-year warranty duly committed by Antec.

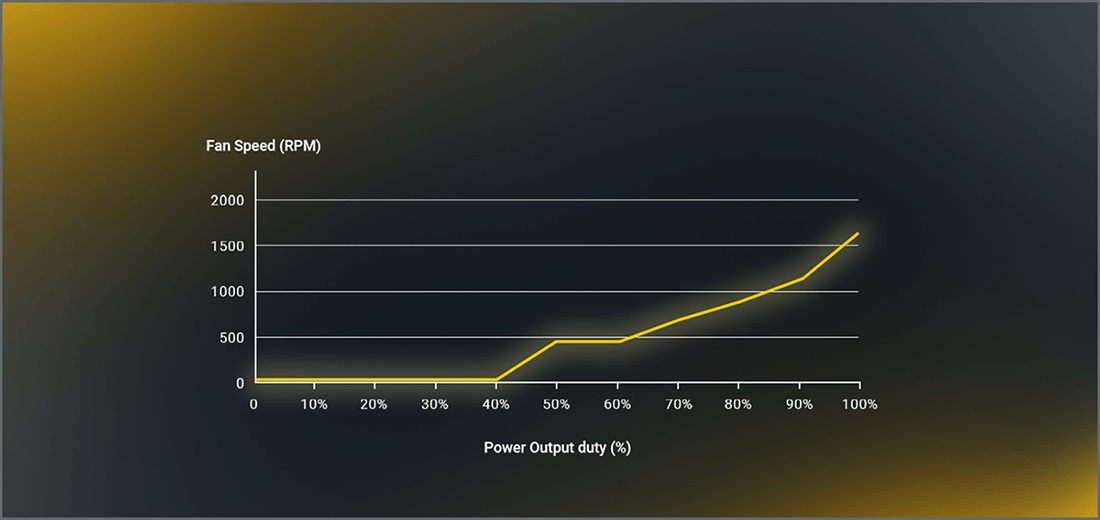

Zero RPM Manager
Smart fan control system with a true fan-off mode during low power draw, ensuring silent operation and extended fan lifespan.

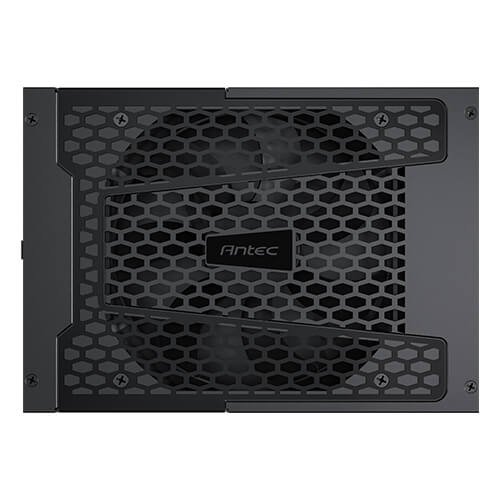

135mm FDB Silent Fan
Equipped with a whisper-quiet 135mm fluid-dynamic bearing fan for high airflow, durability, and near-silent operation even under load.

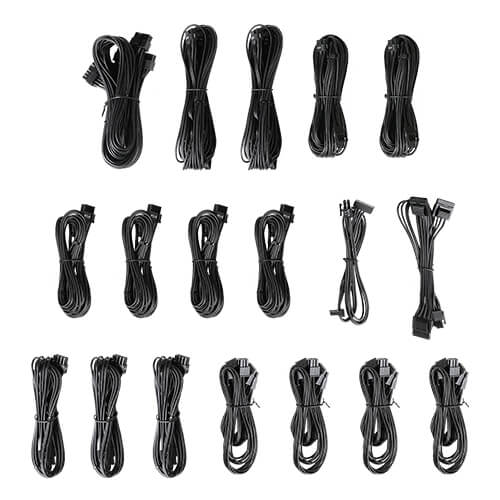

Full Modular
Cable Management
Cable Management
Reduces cable clutter and improves airflow with fully modular cables. Use only what you need for a clean, streamlined build and optimal thermal performance.
Compact
High-Power Design
High-Power Design
Delivering up to 2200W of power, the Signature 2200 Platinum ATX 3.1 is built in a compact chassis, allowing for greater compatibility with a wide range of high-end cases compared to many other high-wattage PSUs.

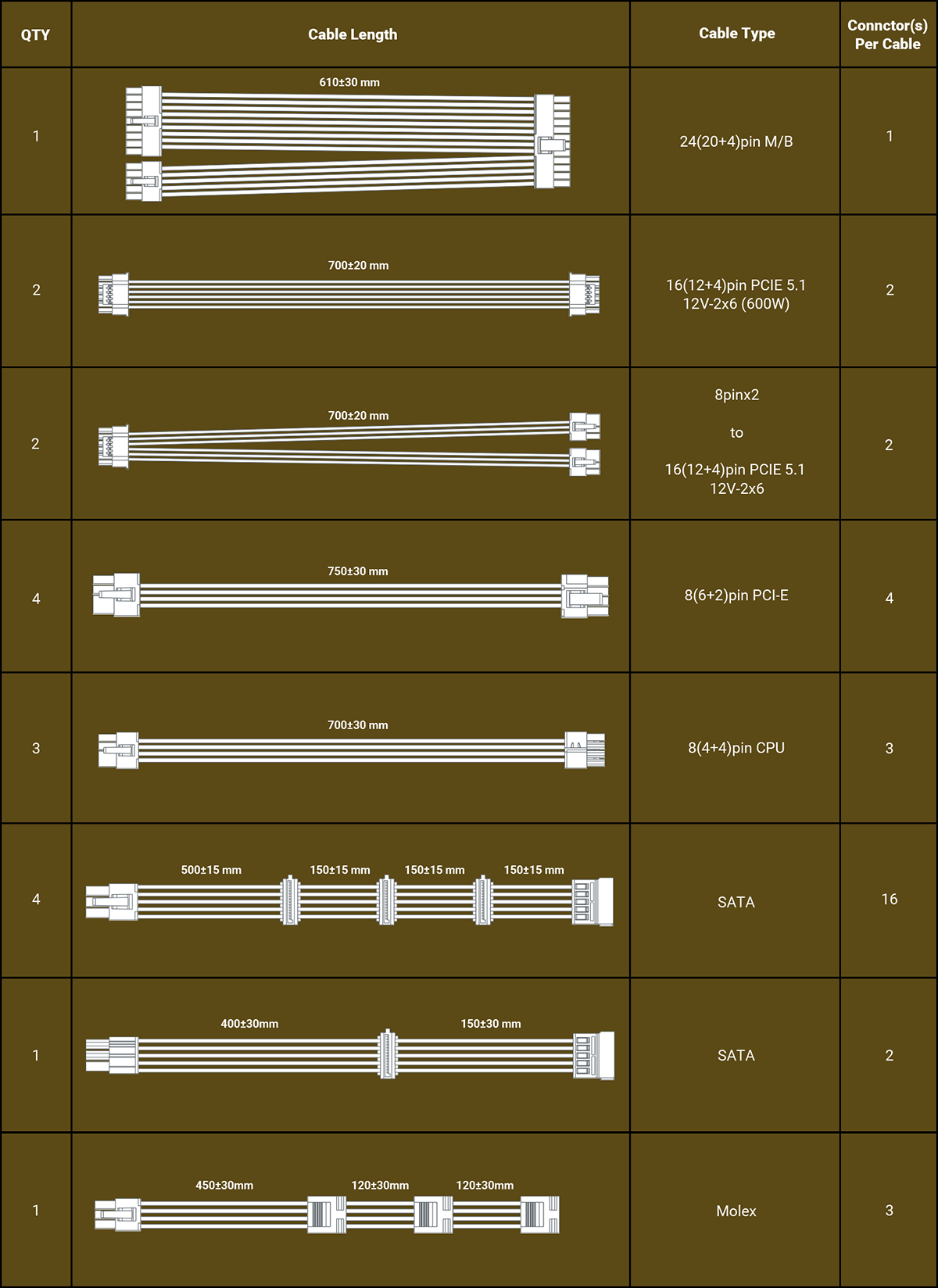

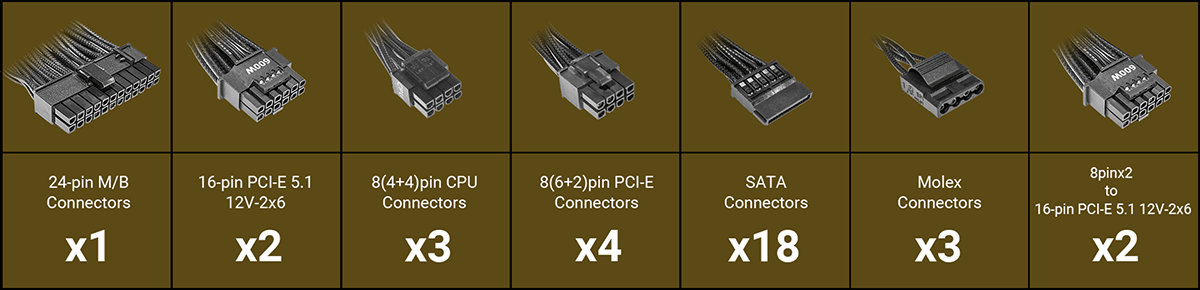

Cables

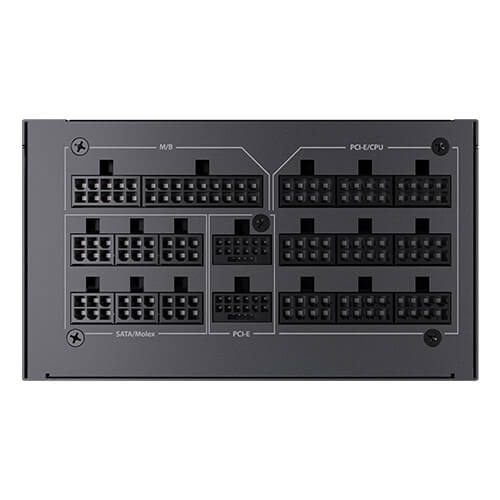

Connectors

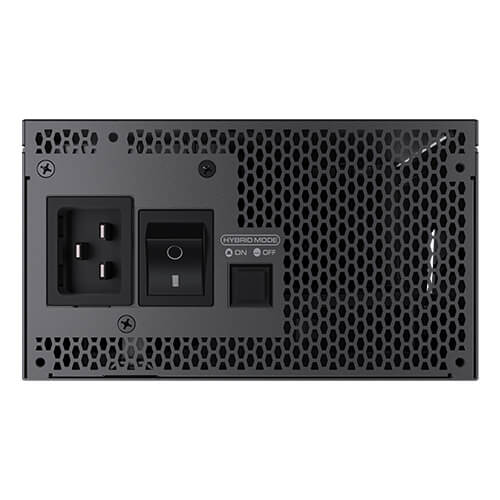

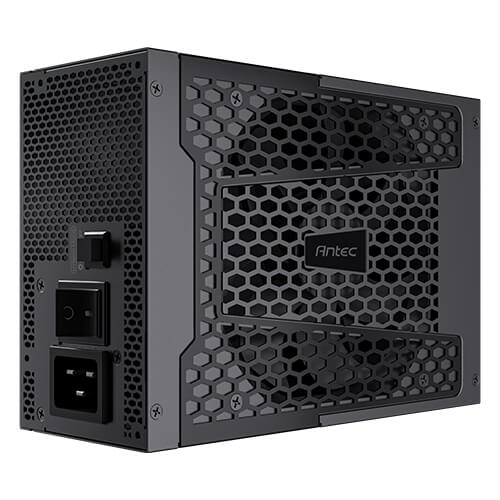

Input

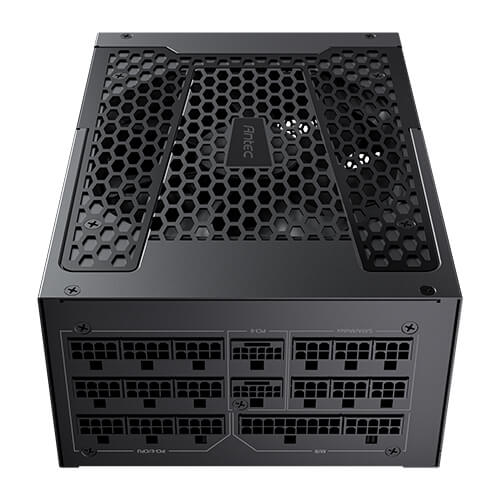

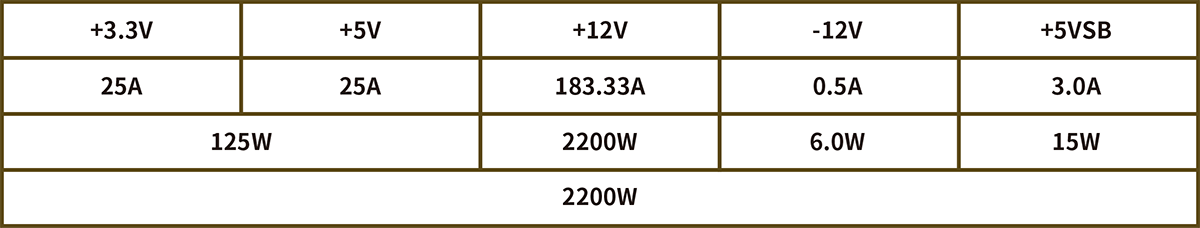

Output
SPECIFICATIONS
| Model | Signature 2200 Platinum ATX3.1 |
| Safe Model | V8000A868SU-25 |
| Type | ATX 12V 3.1 |
| Dimension | 210(L)*150(W)*86(H) |
| Modular | Full-Modular |
| Warranty | 12 years |
| Input Voltage | 200V-240V |
| Input Current | 15A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 2200W |
| Operation Temperature | 0~50°C |
| Regulatory | cTUVus / TUV / CB / CE / FCC / UKCA / 3C |
| Fan | 135mm FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x 24(20+4)pin MB |
| 2 x 16(12+4)pin PCIE 5.1 12V-2x6 | |
| 2 x 12V-2x6 (2x8pin to 12+4pin) | |
| 3 x 8(4+4)pin CPU | |
| 4 x 8(6+2)pin PCI-E | |
| 18 x SATA | |
| 3 x Molex | |
| Shipping Box Dimensions (BULK) | 600(L)mm*505(W)mm*205(H)mm |
| Net Weight (BULK) | 4.43kg |
| Gross Weight (BULK) | 4.85kg |
| UPC# | 0-761345-20156-8 SP2200 US 0-761345-20157-5 SP2200 EC 0-761345-20158-2 SP2200 GB 0-761345-20159-9 SP2200 US BULK 0-761345-20160-5 SP2200 EC BULK 0-761345-20161-2 SP2200 GB BULK |
